mitkModel Class Reference

mitkModel - abstract class used to represent an entity in a rendering scene More...

#include <mitkModel.h>

Inherits mitkObject.

Inherited by mitkDataModel, and mitkWidgetModel.

Inheritance diagram for mitkModel:

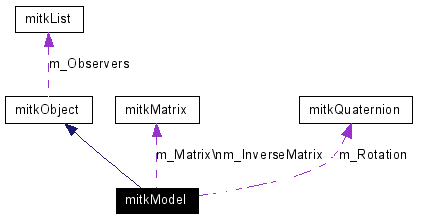

[legend]Collaboration diagram for mitkModel:

[legend]List of all members.

Public Types
enum	RenderMode { Rough, Medium, Refined }
Public Member Functions
virtual void	PrintSelf (ostream &os)
void	VisibilityOn (void)
void	VisibilityOff (void)
void	SetVisibility (int isVisible)
int	GetVisibility (void) const
virtual int	Render (mitkScene *scene)
virtual void	Select (mitkScene *scene)
void	SetOrigin (float x, float y, float z)
void	SetOrigin (float origin[3])
float const *	GetOrigin (void) const
void	GetOrigin (float origin[3]) const
void	SetTranslation (float x, float y, float z)
void	SetTranslation (float trans[3])
float const *	GetTranslation (void) const
void	GetTranslation (float trans[3]) const
void	SetRotation (float x, float y, float z)
void	SetRotation (float rot[3])
void	SetRotation (const mitkQuaternion &q)
void	SetRotation (float ax, float ay, float az, float angle)
mitkQuaternion const *	GetRotation (void) const
void	GetRotation (float rot[3]) const
void	GetRotation (float &ax, float &ay, float &az, float &angle) const
void	SetScale (float sx, float sy, float sz)
void	SetScale (float scale[3])
void	SetScale (float scale)
float const *	GetScale (void) const
void	GetScale (float scale[3]) const
void	GetModelMatrix (mitkMatrix *m)
void	GetModelMatrix (float m[16])
mitkMatrix const *	GetModelMatrix ()
void	GetInverseOfModelMatrix (mitkMatrix *m)
void	GetInverseOfModelMatrix (float m[16])
mitkMatrix const *	GetInverseOfModelMatrix ()
float const *	GetBounds ()
void	GetBounds (float bounds[6])
void	GetBounds (float &xMin, float &xMax, float &yMin, float &yMax, float &zMin, float &zMax)
float const *	GetCenter ()
void	GetCenter (float c[3])
float	GetLength ()
void	Reset ()
void	ModelToWorld (float const modelPoint[4], float worldPoint[4])
void	WorldToModel (float const worldPoint[4], float modelPoint[4])
virtual bool	IsOpaque ()=0
bool	GetDataModifyStatus () const
void	SetDataModifyStatus (bool isModify)
void	SetRenderMode (RenderMode mode)
void	SetRenderModeToRough ()
void	SetRenderModeToMedium ()
void	SetRenderModeToRefined ()
RenderMode	GetRenderMode () const

---

Detailed Description

mitkModel - abstract class used to represent an entity in a rendering scene

mitkModel is an abstract class used to represent an entity in a rendering scene.

---

Member Enumeration Documentation

enum mitkModel::RenderMode

The enumeration for render mode. Enumerator: Rough  render model in rough mode to achieve a faster rendering process Medium  render model in medium mode to get a medium result at a medium rendering speed Refined  render model in refined mode, but result in a slower rendering speed

---

Member Function Documentation

void mitkModel::GetBounds (  float &  xMin, float &  xMax, float &  yMin, float &  yMax, float &  zMin, float &  zMax )

Get the bounds for this Prop3D as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). Parameters: xMin  minimum value in x-axis xMax  maximum value in x-axis yMin  minimum value in y-axis yMax  maximum value in y-axis zMin  minimum value in z-axis zMax  maximum value in z-axis Note: This function will call the virtual function GetBounds() to get the proper bounds according to the actual type of object.

void mitkModel::GetBounds (  float  bounds[6]  )

Get the bounds for this Prop3D as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). Parameters: bounds[6]  a float array returns the Xmin, Xmax, Ymin, Ymax, Zmin and Zmax in turn. Note: This function will call the virtual function GetBounds() to get the proper bounds according to the actual type of object.

float const* mitkModel::GetBounds (   )

Get the bounds for this Prop3D as (Xmin,Xmax,Ymin,Ymax,Zmin,Zmax). Returns: Return a float array which contains Xmin, Xmax, Ymin, Ymax, Zmin and Zmax in turn. Note: This is a pure virtual function. It must be implemented in subclasses.

void mitkModel::GetCenter (  float  c[3]  )

Get the center of the bounding box in world coordinates. Parameters: c[3]  return a float array which contains Cx, Cy, Cz in turn

float const* mitkModel::GetCenter (   )

Get the center of the bounding box in world coordinates. Returns: Return a float array which contains Cx, Cy, Cz in turn.

bool mitkModel::GetDataModifyStatus (   )  const [inline]

Get the status of source data. Returns: Return true if the source data is modified. Otherwise return false.

mitkMatrix const* mitkModel::GetInverseOfModelMatrix (   )

Get the inverse of model matrix. Returns: Return a pointer to a mitkMatrix contains the inverse of model matrix.

void mitkModel::GetInverseOfModelMatrix (  float  m[16]  )

Get the inverse of model matrix. Parameters: m[16]  a float array returns the inverse of model matrix Warning: The matrix elements in the array are arranged as follows: m[0] m[4] m[8] m[12] m[1] m[5] m[9] m[13] m[2] m[6] m[10] m[14] m[3] m[7] m[11] m[15]

void mitkModel::GetInverseOfModelMatrix (  mitkMatrix *  m  )

Get the inverse of model matrix. Parameters: m  pointer to a mitkMatrix returns the inverse of model matrix

float mitkModel::GetLength (   )

Get the length of the diagonal of the bounding box. Returns: the length of the diagonal of the bounding box

mitkMatrix const* mitkModel::GetModelMatrix (   )

Return a reference to the model's 4x4 composite matrix. Get the matrix from the position, origin, scale and orientation this matrix is cached, so multiple GetMatrix() calls will be efficient. Returns: Return a pointer to a mitkMatrix contains the model matrix.

void mitkModel::GetModelMatrix (  float  m[16]  )

Return a reference to the model's 4x4 composite matrix. Get the matrix from the position, origin, scale and orientation this matrix is cached, so multiple GetMatrix() calls will be efficient. Parameters: m[16]  a float array returns the model's 4x4 composite matrix Warning: The matrix elements in the array are arranged as follows: m[0] m[4] m[8] m[12] m[1] m[5] m[9] m[13] m[2] m[6] m[10] m[14] m[3] m[7] m[11] m[15]

void mitkModel::GetModelMatrix (  mitkMatrix *  m  )

Return a reference to the model's 4x4 composite matrix. Get the matrix from the position, origin, scale and orientation this matrix is cached, so multiple GetMatrix() calls will be efficient. Parameters: m  pointer to a mitkMatrix returns the model's 4x4 composite matrix

void mitkModel::GetOrigin (  float  origin[3]  )  const [inline]

Get the origin of the model. This is the point about which all rotations take place. Parameters: origin[0]  return x-coordinate of the origin origin[1]  return y-coordinate of the origin origin[2]  return z-coordinate of the origin

float const* mitkModel::GetOrigin (  void   )  const [inline]

Get the origin of the model. This is the point about which all rotations take place. Returns: Return a float array contains x, y and z coordinate in turn.

RenderMode mitkModel::GetRenderMode (   )  const [inline]

Get the render mode of this model. See also: RenderMode

void mitkModel::GetRotation (  float &  ax, float &  ay, float &  az, float &  angle )  const [inline]

Get the rotation of the model. Parameters: ax  return x-coordinate of rotation axis ay  return y-coordinate of rotation axis az  return z-coordinate of rotation axis angle  return the angle of rotation in degrees

void mitkModel::GetRotation (  float  rot[3]  )  const [inline]

Get the rotation of the model. (obsolete, just provided for convenience.) Parameters: rot[0]  return rotation around x-axis in degrees rot[1]  return rotation around y-axis in degrees rot[2]  return rotation around z-axis in degrees

mitkQuaternion const* mitkModel::GetRotation (  void   )  const [inline]

Get the rotation of the model. Returns: Return a float array contains rotations around x, y and z axes.

void mitkModel::GetScale (  float  scale[3]  )  const [inline]

Get the scale of the model. Parameters: scale[0]  return scale in x-axis scale[1]  return scale in y-axis scale[2]  return scale in z-axis

float const* mitkModel::GetScale (  void   )  const [inline]

Get the scales of the model. Returns: Return a float array contains scales in x, y and z axes.

void mitkModel::GetTranslation (  float  trans[3]  )  const [inline]

Get the translation of the model. Parameters: trans[0]  return translation in x-axis trans[1]  return translation in y-axis trans[2]  return translation in z-axis

float const* mitkModel::GetTranslation (  void   )  const [inline]

Get the translation of the model. Returns: Return a float array contains translations in x, y and z axes.

int mitkModel::GetVisibility (  void   )  const [inline]

Get the visibility of this model. Returns: Return 1 if the model is visible. Otherwise return 0.

virtual bool mitkModel::IsOpaque (   )  [pure virtual]

Whether this model is opaque. Returns: Return true if this model is opaque. Note: This is a pure virtual function. It must be implemented in subclasses. Implemented in mitkImageModel, mitkOrthogonalImageModel, mitkSurfaceModel, mitkVolumeModel, and mitkWidgetModel.

void mitkModel::ModelToWorld (  float const   modelPoint[4], float  worldPoint[4] )  [inline]

Transform a point from object(model) coordinate to world coordinate. Parameters: modelPoint[4]  a float array contains coordinates of the model point worldPoint[4]  a float array to return coordinates of the world point corresponding to the model point

virtual void mitkModel::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkObject. Reimplemented in mitkAngleWidgetModel2D, mitkAngleWidgetModel3D, mitkClippingPlaneWidgetModel, mitkDataModel, mitkEllipseWidgetModel2D, mitkImageModel, mitkLineWidgetModel2D, mitkLineWidgetModel3D, mitkOrthogonalImageModel, mitkPolygonWidgetModel2D, mitkPseudocolorWidgetModel, mitkPseudocolorWidgetModelEx, mitkRectWidgetModel2D, mitkReslicePlaneWidgetModel, mitkSurfaceModel, mitkVolumeModel, mitkWidgetModel, mitkWidgetModel2D, and mitkWidgetModel3D.

virtual int mitkModel::Render (  mitkScene *  scene  )  [inline, virtual]

Render this model. Parameters: scene  the pointer of an mitkScene in which this model will be shown Returns: Return 1 if this model is rendered successfully. Otherwise return 0. Reimplemented in mitkAngleWidgetModel2D, mitkAngleWidgetModel3D, mitkClippingPlaneWidgetModel, mitkEllipseWidgetModel2D, mitkImageModel, mitkLineWidgetModel2D, mitkLineWidgetModel3D, mitkOrthogonalImageModel, mitkPolygonWidgetModel2D, mitkPseudocolorWidgetModel, mitkPseudocolorWidgetModelEx, mitkRectWidgetModel2D, mitkReslicePlaneWidgetModel, mitkSurfaceModel, and mitkVolumeModel.

void mitkModel::Reset (   )

Reset all the geometric transformation

virtual void mitkModel::Select (  mitkScene *  scene  )  [inline, virtual]

Selecting object in interactive mode using widgets. Parameters: scene  the pointer of an mitkScene in which this model is contained. Warning: Class inherited from mitkModel should rewrite this method only if itself can be picked. If not, ensure doing nothing in this method. Reimplemented in mitkWidgetModel.

void mitkModel::SetDataModifyStatus (  bool  isModify  )  [inline]

Set the status of source data. Parameters: isModify  if the status of source data is modified

void mitkModel::SetOrigin (  float  origin[3]  )  [inline]

Set the origin of the model. This is the point about which all rotations take place. Parameters: origin[0]  x-coordinate of the origin origin[1]  y-coordinate of the origin origin[2]  z-coordinate of the origin

void mitkModel::SetOrigin (  float  x, float  y, float  z )  [inline]

Set the origin of the model. This is the point about which all rotations take place. Parameters: x  x-coordinate of the origin y  y-coordinate of the origin z  z-coordinate of the origin

void mitkModel::SetRenderMode (  RenderMode  mode  )  [inline]

Set render mode. It's just a hint to the renderer. The final result of rendering relies on the actual implementation of render algorithm. Parameters: mode  the render mode See also: RenderMode

void mitkModel::SetRenderModeToMedium (   )  [inline]

Set render mode to medium mode. It's just a hint to the renderer. The final result of rendering relies on the actual implementation of render algorithm. See also: RenderMode

void mitkModel::SetRenderModeToRefined (   )  [inline]

Set render mode to refined mode. It's just a hint to the renderer. The final result of rendering relies on the actual implementation of render algorithm. See also: RenderMode

void mitkModel::SetRenderModeToRough (   )  [inline]

Set render mode to rough mode. It's just a hint to the renderer. The final result of rendering relies on the actual implementation of render algorithm. See also: RenderMode

void mitkModel::SetRotation (  float  ax, float  ay, float  az, float  angle )  [inline]

Set the rotation of the model. Parameters: ax  x-coordinate of rotation axis ay  y-coordinate of rotation axis az  z-coordinate of rotation axis angle  the angle of rotation in degrees

void mitkModel::SetRotation (  const mitkQuaternion &  q  )  [inline]

Set the rotation of the model. Parameters: q  the quaternion of rotation

void mitkModel::SetRotation (  float  rot[3]  )  [inline]

Set the rotation of the model. Parameters: rot[0]  rotation around x-axis in degrees rot[1]  rotation around y-axis in degrees rot[2]  rotation around z-axis in degrees

void mitkModel::SetRotation (  float  x, float  y, float  z )  [inline]

Set the rotation of the model. Parameters: x  rotation around x-axis in degrees y  rotation around y-axis in degrees z  rotation around z-axis in degrees

void mitkModel::SetScale (  float  scale  )  [inline]

Set the scales in x, y and z axes of the model to the same value. Parameters: scale  scale in x, y and z axes

void mitkModel::SetScale (  float  scale[3]  )  [inline]

Set the scale of the model. Parameters: scale[0]  scale in x-axis scale[1]  scale in y-axis scale[2]  scale in z-axis

void mitkModel::SetScale (  float  sx, float  sy, float  sz )  [inline]

Set the scale of the model. Parameters: sx  scale in x-axis sy  scale in y-axis sz  scale in z-axis

void mitkModel::SetTranslation (  float  trans[3]  )  [inline]

Set the translation of the model. Parameters: trans[0]  translation in x-axis trans[1]  translation in y-axis trans[2]  translation in z-axis

void mitkModel::SetTranslation (  float  x, float  y, float  z )  [inline]

Set the translation of the model. Parameters: x  translation in x-axis y  translation in y-axis z  translation in z-axis

void mitkModel::SetVisibility (  int  isVisible  )  [inline]

Set the visibility of this model. Parameters: isVisible  if this model is visible (0 - invisible; 1 - visible)

void mitkModel::VisibilityOff (  void   )  [inline]

Set the visibility of this model off.

void mitkModel::VisibilityOn (  void   )  [inline]

Set the visibility of this model on.

void mitkModel::WorldToModel (  float const   worldPoint[4], float  modelPoint[4] )  [inline]

Transform a point from world coordinate to object(model) coordinate Parameters: worldPoint[4]  a float array contains coordinates of the world point modelPoint[4]  a float array to return coordinates of the model point corresponding to the world point

---

The documentation for this class was generated from the following file:

• mitkModel.h

---
