mitkAngleWidgetModel2D Class Reference

mitkAngleWidgetModel2D - a 2D widget for measuring angles More...

#include <mitkAngleWidgetModel2D.h>

Inherits mitkWidgetModel2D.

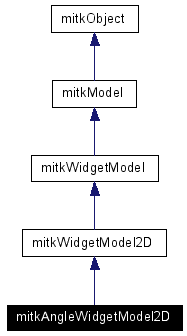

Inheritance diagram for mitkAngleWidgetModel2D:

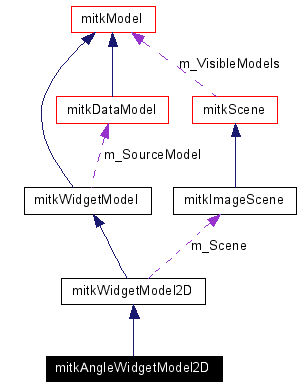

[legend]Collaboration diagram for mitkAngleWidgetModel2D:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
virtual int	Render (mitkScene *scene)
virtual void	Pick (const WidgetNames &names)
virtual void	Release ()
void	SetStartPoint (float p[2])
void	SetStartPoint (float x, float y)
void	SetStartPoint (int sx, int sy)
void	SetEndPoint0 (float p[2])
void	SetEndPoint0 (float x, float y)
void	SetEndPoint0 (int sx, int sy)
void	SetEndPoint1 (float p[2])
void	SetEndPoint1 (float x, float y)
void	SetEndPoint1 (int sx, int sy)
float	GetAngleInDegree ()
float	GetAngleInRadian ()
Protected Member Functions
virtual void	_onMouseDown (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseUp (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseMove (bool ctrlDown, bool shiftDown, int xPos, int yPos, int deltaX, int deltaY)

---

Detailed Description

mitkAngleWidgetModel2D - a 2D widget for measuring angles

mitkAngleWidgetModel2D is a 2D widget for measuring angles. It can respond the mouse events and return the current angle in units of degrees or radian. It is supposed to be attached to a 2D data model (e.g. mitkImageModel) and add to a 2D scene (e.g. mitkImageScene), and in other conditions the display could be improper.

---

Member Function Documentation

virtual void mitkAngleWidgetModel2D::_onMouseDown (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse down event. Parameters: mouseButton  indicates which mouse button is pressed ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse down event occurs yPos  y-coordinate of the mouse position when mouse down event occurs Implements mitkWidgetModel.

virtual void mitkAngleWidgetModel2D::_onMouseMove (  bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos, int  deltaX, int  deltaY )  [protected, virtual]

Deal with mouse move event. Parameters: ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse move event occurs yPos  y-coordinate of the mouse position when mouse move event occurs deltaX  movement along x-axis of the mouse when mouse move event occurs deltaY  movement along y-axis of the mouse when mouse move event occurs Implements mitkWidgetModel.

virtual void mitkAngleWidgetModel2D::_onMouseUp (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse up event. Parameters: mouseButton  indicates which mouse button was pressed and now released ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse up event occurs yPos  y-coordinate of the mouse position when mouse up event occurs Implements mitkWidgetModel.

float mitkAngleWidgetModel2D::GetAngleInDegree (   )

Get the value of angle in degree. Returns: Return value of this angle in degree.

float mitkAngleWidgetModel2D::GetAngleInRadian (   )

Get the value of angle in radian. Returns: Return value of this angle in radian.

virtual void mitkAngleWidgetModel2D::Pick (  const WidgetNames &  names  )  [virtual]

Maintain the selection status when this widget is picked. Parameters: names  a constant reference to an WidgerNames which contains the names of selected parts of this widget. Implements mitkWidgetModel.

virtual void mitkAngleWidgetModel2D::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkWidgetModel2D.

virtual void mitkAngleWidgetModel2D::Release (   )  [virtual]

Maintain the selection status when this widget is released. Implements mitkWidgetModel.

virtual int mitkAngleWidgetModel2D::Render (  mitkScene *  scene  )  [virtual]

Render this model. Parameters: scene  the pointer of an mitkScene in which this model will be shown Returns: Return 1 if this model is rendered successfully. Otherwise return 0. Reimplemented from mitkModel.

void mitkAngleWidgetModel2D::SetEndPoint0 (  int  sx, int  sy )  [inline]

Set ont end point of the angle. Parameters: sx  x-coordinate of this point on screen sy  y-coordinate of this point on screen Note: The coordinates of the point are in the screen coordinate system. This function is useful when you can not get the original coordinates in the object space easily outside. It can do this job for you. But if this widget is attach to a data model, you must ensure the source model and the scene which contains this widget and the source model are properly set to this widget (e.g. call SetSourceModel() of this widget or call AddWidget() of the source model and SetScene() of this widget first) before calling this function, because this function needs the transform matrix of the source model and the scene to calculate the original coordinates.

void mitkAngleWidgetModel2D::SetEndPoint0 (  float  x, float  y )  [inline]

Set ont end point of the angle in object coordinate. Parameters: x  x-coordinate of this point in the object space y  y-coordinate of this point in the object space Note: Because this widget is for 2D image, the z-coordinate will always be zero.

void mitkAngleWidgetModel2D::SetEndPoint0 (  float  p[2]  )  [inline]

Set ont end point of the angle in object coordinate. Parameters: p[0]  x-coordinate of this point in the object space p[1]  y-coordinate of this point in the object space Note: Because this widget is for 2D image, the z-coordinate will always be zero.

void mitkAngleWidgetModel2D::SetEndPoint1 (  int  sx, int  sy )  [inline]

Set the other end point of the angle. Parameters: sx  x-coordinate of this point on screen sy  y-coordinate of this point on screen Note: The coordinates of the point are in the screen coordinate system. This function is useful when you can not get the original coordinates in the object space easily outside. It can do this job for you. But if this widget is attach to a data model, you must ensure the source model and the scene which contains this widget and the source model are properly set to this widget (e.g. call SetSourceModel() of this widget or call AddWidget() of the source model and SetScene() of this widget first) before calling this function, because this function needs the transform matrix of the source model and the scene to calculate the original coordinates.

void mitkAngleWidgetModel2D::SetEndPoint1 (  float  x, float  y )  [inline]

Set the other end point of the angle in object coordinate. Parameters: x  x-coordinate of this point in the object space y  y-coordinate of this point in the object space Note: Because this widget is for 2D image, the z-coordinate will always be zero.

void mitkAngleWidgetModel2D::SetEndPoint1 (  float  p[2]  )  [inline]

Set the other end point of the angle in object coordinate. Parameters: p[0]  x-coordinate of this point in the object space p[1]  y-coordinate of this point in the object space Note: Because this widget is for 2D image, the z-coordinate will always be zero.

void mitkAngleWidgetModel2D::SetStartPoint (  int  sx, int  sy )  [inline]

Set the start point of the angle. Parameters: sx  x-coordinate of this point on screen sy  y-coordinate of this point on screen Note: The coordinates of the point are in the screen coordinate system. This function is useful when you can not get the original coordinates in the object space easily outside. It can do this job for you. But if this widget is attach to a data model, you must ensure the source model and the scene which contains this widget and the source model are properly set to this widget (e.g. call SetSourceModel() of this widget or call AddWidget() of the source model and SetScene() of this widget first) before calling this function, because this function needs the transform matrix of the source model and the scene to calculate the original coordinates.

void mitkAngleWidgetModel2D::SetStartPoint (  float  x, float  y )  [inline]

Set the start point of the angle in object coordinate. Parameters: x  x-coordinate of this point in the object space y  y-coordinate of this point in the object space Note: Because this widget is for 2D image, the z-coordinate will always be zero.

void mitkAngleWidgetModel2D::SetStartPoint (  float  p[2]  )  [inline]

Set the start point of the angle in object coordinate. Parameters: p[0]  x-coordinate of this point in the object space p[1]  y-coordinate of this point in the object space Note: Because this widget is for 2D image, the z-coordinate will always be zero.

---

The documentation for this class was generated from the following file:

• mitkAngleWidgetModel2D.h

---
