mitkPolygonWidgetModel2D Class Reference

mitkPolygonWidgetModel2D - a 2D widget for displaying an arbitrary polygon in an image scene More...

#include <mitkPolygonWidgetModel2D.h>

Inherits mitkWidgetModel2D.

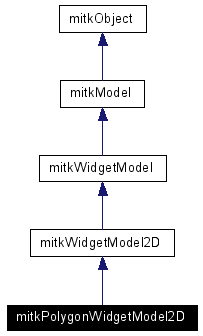

Inheritance diagram for mitkPolygonWidgetModel2D:

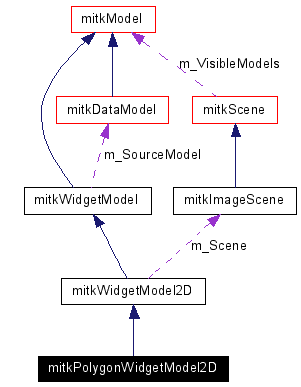

[legend]Collaboration diagram for mitkPolygonWidgetModel2D:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
virtual int	Render (mitkScene *scene)
virtual void	Pick (const WidgetNames &names)
virtual void	Release ()
void	AddPoint (int sx, int sy)
void	AddPoint (float x, float y)
void	AddPoint (float point[2])
void	MoveCurrentPoint (int sx, int sy)
void	MoveCurrentPoint (float x, float y)
void	MoveCurrentPoint (float point[2])
void	SetUnitName (const string &name)
const string &	GetUnitName ()
float	GetArea ()
float	GetPerimeter ()
bool	GetCurrentPoint (float &x, float &y)
bool	GetCurrentPoint (int &ix, int &iy)
int	GetPointsNumber ()
bool	GetPoint (int idx, float &x, float &y)
bool	GetPoint (int idx, int &ix, int &iy)
virtual mitkVolume *	GetRegionMask ()
Protected Member Functions
virtual void	_onMouseDown (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseUp (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseMove (bool ctrlDown, bool shiftDown, int xPos, int yPos, int deltaX, int deltaY)

---

Detailed Description

mitkPolygonWidgetModel2D - a 2D widget for displaying an arbitrary polygon in an image scene

mitkPolygonWidgetModel2D a 2D widget for displaying an arbitrary polygon in an image scene. It can respond the mouse events and return the current area of this arbitrary polygon. It is supposed to be attached to a 2D data model (e.g. mitkImageModel) and add to a 2D scene (e.g. mitkImageScene), and in other conditions the display could be improper.

---

Member Function Documentation

virtual void mitkPolygonWidgetModel2D::_onMouseDown (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse down event. Parameters: mouseButton  indicates which mouse button is pressed ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse down event occurs yPos  y-coordinate of the mouse position when mouse down event occurs Implements mitkWidgetModel.

virtual void mitkPolygonWidgetModel2D::_onMouseMove (  bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos, int  deltaX, int  deltaY )  [protected, virtual]

Deal with mouse move event. Parameters: ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse move event occurs yPos  y-coordinate of the mouse position when mouse move event occurs deltaX  movement along x-axis of the mouse when mouse move event occurs deltaY  movement along y-axis of the mouse when mouse move event occurs Implements mitkWidgetModel.

virtual void mitkPolygonWidgetModel2D::_onMouseUp (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse up event. Parameters: mouseButton  indicates which mouse button was pressed and now released ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse up event occurs yPos  y-coordinate of the mouse position when mouse up event occurs Implements mitkWidgetModel.

void mitkPolygonWidgetModel2D::AddPoint (  float  point[2]  )  [inline]

Add point. Parameters: point[0]  x-coordinate of the point in object space point[1]  y-coordinate of the point in object space

void mitkPolygonWidgetModel2D::AddPoint (  float  x, float  y )

Add point. Parameters: x  x-coordinate of the point in object space y  y-coordinate of the point in object space

void mitkPolygonWidgetModel2D::AddPoint (  int  sx, int  sy )

Add point. Parameters: sx  x-coordinate of the point in screen space sy  y-coordinate of the point in screen space Note: The coordinates of the point are in the screen coordinate system. This function is useful when you can not get the original coordinates in the object space easily outside. It can do this job for you. But if this widget is attach to a data model, you must ensure the source model and the scene which contains this widget and the source model are properly set to this widget (e.g. call SetSourceModel() of this widget or call AddWidget() of the source model and SetScene() of this widget first) before calling this function, because this function needs the transform matrix of the source model and the scene to calculate the original coordinates.

float mitkPolygonWidgetModel2D::GetArea (   )

Get area of this polygon. Returns: Return the area of this polygon.

bool mitkPolygonWidgetModel2D::GetCurrentPoint (  int &  ix, int &  iy )

Get currently picked point in the original image. Parameters: ix  return x-coordinate of the picked point iy  return y-coordinate of the picked point Returns: Return false if no point was picked. Otherwise return true.

bool mitkPolygonWidgetModel2D::GetCurrentPoint (  float &  x, float &  y )

Get currently picked point in object space (affected by pixel spacing). Parameters: x  return x-coordinate of the picked point y  return y-coordinate of the picked point Returns: Return false if no point was picked. Otherwise return true.

float mitkPolygonWidgetModel2D::GetPerimeter (   )

Get perimeter of this polygon. Returns: Return the perimeter of this polygon.

bool mitkPolygonWidgetModel2D::GetPoint (  int  idx, int &  ix, int &  iy )

Get the integral coordinates of the ith point in the original image. Parameters: idx  the index of the point to get ix  return the x-coordinate iy  return the y-coordinate Returns: Return false if no such point was found, otherwise return true.

bool mitkPolygonWidgetModel2D::GetPoint (  int  idx, float &  x, float &  y )

Get the coordinates of the ith point in object space (affected by pixel spacing). Parameters: idx  the index of the point to get x  return the x-coordinate y  return the y-coordinate Returns: Return false if no such point was found, otherwise return true.

int mitkPolygonWidgetModel2D::GetPointsNumber (   )

Get the number of points. Returns: Return the number of points.

virtual mitkVolume* mitkPolygonWidgetModel2D::GetRegionMask (   )  [virtual]

Get mask image where the value of widget region is 255 and the rest is 0. Returns: Return a pointer of mitkVolume object contains the mask image. Note: The returned object pointer should be deleted properly by yourself. Reimplemented from mitkWidgetModel2D.

const string& mitkPolygonWidgetModel2D::GetUnitName (   )  [inline]

Get name string of unit. Returns: Return a constant reference to a string contains the name of the length unit this line uses

void mitkPolygonWidgetModel2D::MoveCurrentPoint (  float  point[2]  )  [inline]

Move current point. Parameters: point[0]  x-coordinate of the point in object space point[1]  y-coordinate of the point in object space

void mitkPolygonWidgetModel2D::MoveCurrentPoint (  float  x, float  y )

Move current point. Parameters: x  x-coordinate of the point in object space y  y-coordinate of the point in object space

void mitkPolygonWidgetModel2D::MoveCurrentPoint (  int  sx, int  sy )

Move current point. Parameters: sx  x-coordinate of the point in screen space sy  y-coordinate of the point in screen space Note: The coordinates of the point are in the screen coordinate system. This function is useful when you can not get the original coordinates in the object space easily outside. It can do this job for you. But if this widget is attach to a data model, you must ensure the source model and the scene which contains this widget and the source model are properly set to this widget (e.g. call SetSourceModel() of this widget or call AddWidget() of the source model and SetScene() of this widget first) before calling this function, because this function needs the transform matrix of the source model and the scene to calculate the original coordinates.

virtual void mitkPolygonWidgetModel2D::Pick (  const WidgetNames &  names  )  [virtual]

Maintain the selection status when this widget is picked. Parameters: names  a constant reference to an WidgerNames which contains the names of selected parts of this widget. Implements mitkWidgetModel.

virtual void mitkPolygonWidgetModel2D::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkWidgetModel2D.

virtual void mitkPolygonWidgetModel2D::Release (   )  [virtual]

Maintain the selection status when this widget is released. Implements mitkWidgetModel.

virtual int mitkPolygonWidgetModel2D::Render (  mitkScene *  scene  )  [virtual]

Render this model. Parameters: scene  the pointer of an mitkScene in which this model will be shown Returns: Return 1 if this model is rendered successfully. Otherwise return 0. Reimplemented from mitkModel.

void mitkPolygonWidgetModel2D::SetUnitName (  const string &  name  )  [inline]

Set name string of unit. Parameters: name  a constant reference to a string contains the name of the length unit (e.g. mm) this line uses

---

The documentation for this class was generated from the following file:

• mitkPolygonWidgetModel2D.h

---
