mitkPseudocolorWidgetModel Class Reference

mitkPseudocolorWidgetModel - a 2D widget for displaying pseudocolor image More...

#include <mitkPseudocolorWidgetModel.h>

Inherits mitkWidgetModel2D.

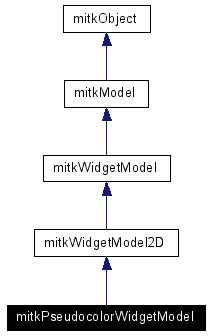

Inheritance diagram for mitkPseudocolorWidgetModel:

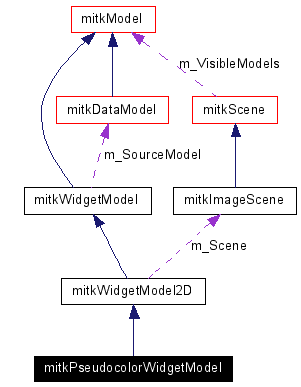

[legend]Collaboration diagram for mitkPseudocolorWidgetModel:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
virtual int	Render (mitkScene *scene)
virtual void	Pick (const WidgetNames &names)
virtual void	Release ()
void	SetStartPoint (int x, int y)
void	SetMovePoint (int x, int y)
void	SetEndPoint (int x, int y)
int	GetWidth ()
int	GetHeight ()
int	GetLeft ()
int	GetRight ()
int	GetBottom ()
int	GetTop ()
void	GetStartPoint (int &sx, int &sy)
void	GetStartPoint (int p[2])
void	GetEndPoint (int &ex, int &ey)
void	GetEndPoint (int p[2])
bool	IsValid ()
int	SetColorTable (unsigned char table[][3], int colorNum=COLOR_TABLE_SIZE)
void	ResetColorTable ()
int	GetColorTable (unsigned char table[][3], int colorNum=COLOR_TABLE_SIZE)
virtual mitkVolume *	GetRegionMask ()
Protected Member Functions
virtual void	_onMouseDown (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseUp (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseMove (bool ctrlDown, bool shiftDown, int xPos, int yPos, int deltaX, int deltaY)

---

Detailed Description

mitkPseudocolorWidgetModel - a 2D widget for displaying pseudocolor image

mitkPseudocolorWidgetModel is a 2D widget for displaying pseudocolor image. It can respond the mouse events and display the pseudocolor image of current rectangle part and return the width and height. It is supposed to be attached to a 2D data model (e.g. mitkImageModel) and add to a 2D scene (e.g. mitkImageScene), and in other conditions the display could be improper.

---

Member Function Documentation

virtual void mitkPseudocolorWidgetModel::_onMouseDown (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse down event. Parameters: mouseButton  indicates which mouse button is pressed ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse down event occurs yPos  y-coordinate of the mouse position when mouse down event occurs Implements mitkWidgetModel.

virtual void mitkPseudocolorWidgetModel::_onMouseMove (  bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos, int  deltaX, int  deltaY )  [protected, virtual]

Deal with mouse move event. Parameters: ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse move event occurs yPos  y-coordinate of the mouse position when mouse move event occurs deltaX  movement along x-axis of the mouse when mouse move event occurs deltaY  movement along y-axis of the mouse when mouse move event occurs Implements mitkWidgetModel.

virtual void mitkPseudocolorWidgetModel::_onMouseUp (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse up event. Parameters: mouseButton  indicates which mouse button was pressed and now released ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse up event occurs yPos  y-coordinate of the mouse position when mouse up event occurs Implements mitkWidgetModel.

int mitkPseudocolorWidgetModel::GetBottom (   )  [inline]

Get the bottom of the pseudocolor rectangle. Returns: Return the bottom of the pseudocolor rectangle.

int mitkPseudocolorWidgetModel::GetColorTable (  unsigned char  table[][3], int  colorNum = COLOR_TABLE_SIZE )

Get color table. Parameters: table  an unsigned char array to contain the color table and the arrangement of the color components is 'RGBRGBRGB...' colorNum  the number of colors the buffer table[][3] can contain Returns: Return the number of colors gotten actually.

void mitkPseudocolorWidgetModel::GetEndPoint (  int  p[2]  )  [inline]

Get the end point of the pseudocolor rectangle. Parameters: p[0]  return the x-coordinate of the start point p[1]  return the y-coordinate of the start point

void mitkPseudocolorWidgetModel::GetEndPoint (  int &  ex, int &  ey )  [inline]

Get the end point of the pseudocolor rectangle. Parameters: ex  return the x-coordinate of the end point ey  return the y-coordinate of the end point

int mitkPseudocolorWidgetModel::GetHeight (   )  [inline]

Get the height of the pseudocolor rectangle. Returns: Return the height of the pseudocolor rectangle.

int mitkPseudocolorWidgetModel::GetLeft (   )  [inline]

Get the left of the pseudocolor rectangle. Returns: Return the left of the pseudocolor rectangle.

virtual mitkVolume* mitkPseudocolorWidgetModel::GetRegionMask (   )  [virtual]

Get mask image where the value of widget region is 255 and the rest is 0. Returns: Return a pointer of mitkVolume object contains the mask image. Note: The returned object pointer should be deleted properly by yourself. Reimplemented from mitkWidgetModel2D.

int mitkPseudocolorWidgetModel::GetRight (   )  [inline]

Get the right of the pseudocolor rectangle. Returns: Return the right of the pseudocolor rectangle.

void mitkPseudocolorWidgetModel::GetStartPoint (  int  p[2]  )  [inline]

Get the start point of the pseudocolor rectangle. Parameters: p[0]  return the x-coordinate of the start point p[1]  return the y-coordinate of the start point

void mitkPseudocolorWidgetModel::GetStartPoint (  int &  sx, int &  sy )  [inline]

Get the start point of the pseudocolor rectangle. Parameters: sx  return the x-coordinate of the start point sy  return the y-coordinate of the start point

int mitkPseudocolorWidgetModel::GetTop (   )  [inline]

Get the top of the pseudocolor rectangle. Returns: Return the left of the pseudocolor rectangle.

int mitkPseudocolorWidgetModel::GetWidth (   )  [inline]

Get the width of the pseudocolor rectangle. Returns: Return the width of the pseudocolor rectangle.

bool mitkPseudocolorWidgetModel::IsValid (   )  [inline]

If the widget model is valid. Returns: Return if the widget model is valid (i.e. can be shown in the scene).

virtual void mitkPseudocolorWidgetModel::Pick (  const WidgetNames &  names  )  [virtual]

Maintain the selection status when this widget is picked. Parameters: names  a constant reference to an WidgerNames which contains the names of selected parts of this widget. Implements mitkWidgetModel.

virtual void mitkPseudocolorWidgetModel::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkWidgetModel2D.

virtual void mitkPseudocolorWidgetModel::Release (   )  [virtual]

Maintain the selection status when this widget is released. Implements mitkWidgetModel.

virtual int mitkPseudocolorWidgetModel::Render (  mitkScene *  scene  )  [virtual]

Render this model. Parameters: scene  the pointer of an mitkScene in which this model will be shown Returns: Return 1 if this model is rendered successfully. Otherwise return 0. Reimplemented from mitkModel.

void mitkPseudocolorWidgetModel::ResetColorTable (   )

Reset the color table to the default values.

int mitkPseudocolorWidgetModel::SetColorTable (  unsigned char  table[][3], int  colorNum = COLOR_TABLE_SIZE )

Set color table. Parameters: table  an unsigned char array contains the color table and the arrangement of the color components is 'RGBRGBRGB...' colorNum  the number of colors in the table to set Returns: Return the number of colors set to the table. Note: The total number of colors in the table must be less than mitkPseudocolorWidgetModel::COLOR_TABLE_SIZE. At present, this class can support a color table whose number of colors is up to 256 (i.e. mitkPseudocolorWidgetModel::COLOR_TABLE_SIZE = 256).

void mitkPseudocolorWidgetModel::SetEndPoint (  int  x, int  y )

Set the end point of the pseudocolor image rectangle draged by mouse. Parameters: x  x-coordinate of this point y  y-coordinate of this point

void mitkPseudocolorWidgetModel::SetMovePoint (  int  x, int  y )

Set position of the moving end point. Parameters: x  x-coordinate of the moving end point of this line y  y-coordinate of the moving end point of this line

void mitkPseudocolorWidgetModel::SetStartPoint (  int  x, int  y )

Set the start point of the pseudocolor image rectangle draged by mouse. Parameters: x  x-coordinate of this point y  y-coordinate of this point

---

The documentation for this class was generated from the following file:

• mitkPseudocolorWidgetModel.h

---
