mitkWidgetModel3D Class Reference

mitkWidgetModel3D - abstract class used to represent a 3D widget entity More...

#include <mitkWidgetModel3D.h>

Inherits mitkWidgetModel.

Inherited by mitkAngleWidgetModel3D, mitkClippingPlaneWidgetModel, mitkLineWidgetModel3D, and mitkReslicePlaneWidgetModel.

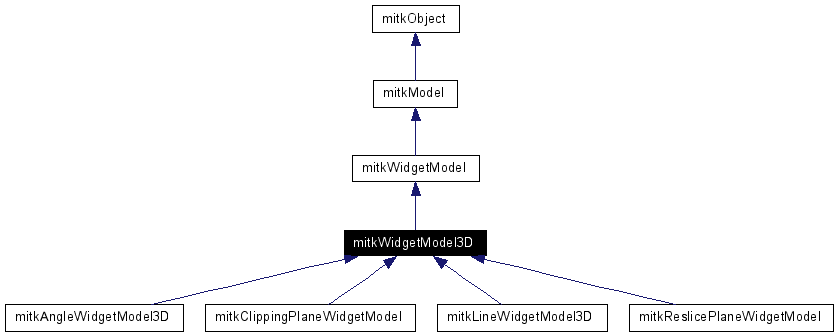

Inheritance diagram for mitkWidgetModel3D:

[legend]Collaboration diagram for mitkWidgetModel3D:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
virtual void	SetScene (mitkScene *scene)
virtual void	SetSourceModel (mitkDataModel *model)
virtual void	Update ()

---

Detailed Description

mitkWidgetModel3D - abstract class used to represent a 3D widget entity

mitkWidgetModel3D is an abstract class used to represent a 3D widget entity (e.g. a line or an angle) in a rendering scene. It can make responses to the mouse events and manipulate the mitkDataModel to which it attaches.

Note:

3D widgets are only supposed to be attached to 3D data models (e.g. mitkVolumeModel, mitkSurfaceModel). Attaching them to a 2D data model could induce improper display.

---

Member Function Documentation

virtual void mitkWidgetModel3D::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkWidgetModel. Reimplemented in mitkAngleWidgetModel3D, mitkClippingPlaneWidgetModel, mitkLineWidgetModel3D, and mitkReslicePlaneWidgetModel.

virtual void mitkWidgetModel3D::SetScene (  mitkScene *  scene  )  [inline, virtual]

Set the scene which contains this model. Parameters: scene  pointer to the mitkScene contains this model Implements mitkWidgetModel.

virtual void mitkWidgetModel3D::SetSourceModel (  mitkDataModel *  model  )  [virtual]

Associate this widget with a model. Parameters: model  pointer to an miekDataModel to which this widget attach Reimplemented from mitkWidgetModel. Reimplemented in mitkClippingPlaneWidgetModel, and mitkReslicePlaneWidgetModel.

virtual void mitkWidgetModel3D::Update (   )  [virtual]

Update the parameters of the widget. Implements mitkWidgetModel. Reimplemented in mitkAngleWidgetModel3D, mitkClippingPlaneWidgetModel, mitkLineWidgetModel3D, and mitkReslicePlaneWidgetModel.

---

The documentation for this class was generated from the following file:

• mitkWidgetModel3D.h

---
