mitkAngleWidgetModel3D Class Reference

mitkAngleWidgetModel3D - a 3D widget for measuring angles More...

#include <mitkAngleWidgetModel3D.h>

Inherits mitkWidgetModel3D.

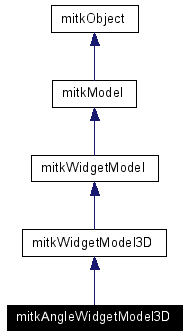

Inheritance diagram for mitkAngleWidgetModel3D:

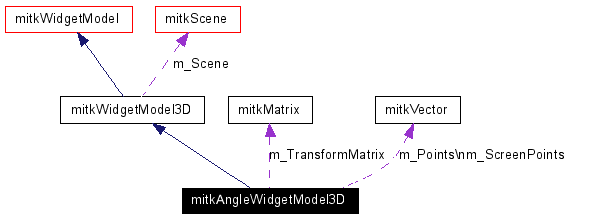

[legend]Collaboration diagram for mitkAngleWidgetModel3D:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkAngleWidgetModel3D (float startPoint[3], float endPoint0[3], float endPoint1[3])
virtual int	Render (mitkScene *scene)
virtual void	Pick (const WidgetNames &names)
virtual void	Release ()
void	SetUnits (float ux, float uy, float uz)
void	SetUnits (float units[3])
float	GetAngleInDegree ()
float	GetAngleInRadian ()
virtual void	Update ()
Protected Member Functions
virtual void	_onMouseDown (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseUp (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void	_onMouseMove (bool ctrlDown, bool shiftDown, int xPos, int yPos, int deltaX, int deltaY)

---

Detailed Description

mitkAngleWidgetModel3D - a 3D widget for measuring angles

mitkAngleWidgetModel3D is a 3D widget for measuring angles. It can respond the mouse events and return the current angle in units of degrees or radian. It is supposed to be attached to a 3D data model (e.g. mitkVolumeModel, mitkSurfaceModel) and add to a 3D scene (e.g. mitkScene), and in other conditions the display could be improper.

---

Constructor & Destructor Documentation

mitkAngleWidgetModel3D::mitkAngleWidgetModel3D (  float  startPoint[3], float  endPoint0[3], float  endPoint1[3] )

One and only constructor of mitkAngleWidgetModel3D. Parameters: startPoint[0]  x-coordinate of start point startPoint[1]  y-coordinate of start point startPoint[2]  z-coordinate of start point endPoint0[0]  x-coordinate of one end point endPoint0[1]  y-coordinate of one end point endPoint0[2]  z-coordinate of one end point endPoint1[0]  x-coordinate of the other end point endPoint1[1]  y-coordinate of the other end point endPoint1[2]  z-coordinate of the other end point

---

Member Function Documentation

virtual void mitkAngleWidgetModel3D::_onMouseDown (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse down event. Parameters: mouseButton  indicates which mouse button is pressed ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse down event occurs yPos  y-coordinate of the mouse position when mouse down event occurs Implements mitkWidgetModel.

virtual void mitkAngleWidgetModel3D::_onMouseMove (  bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos, int  deltaX, int  deltaY )  [protected, virtual]

Deal with mouse move event. Parameters: ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse move event occurs yPos  y-coordinate of the mouse position when mouse move event occurs deltaX  movement along x-axis of the mouse when mouse move event occurs deltaY  movement along y-axis of the mouse when mouse move event occurs Implements mitkWidgetModel.

virtual void mitkAngleWidgetModel3D::_onMouseUp (  int  mouseButton, bool  ctrlDown, bool  shiftDown, int  xPos, int  yPos )  [protected, virtual]

Deal with mouse up event. Parameters: mouseButton  indicates which mouse button was pressed and now released ctrlDown  indicates if the key "Ctrl" is pressed shiftDown  indicates if the key "Shift" is pressed xPos  x-coordinate of the mouse position when mouse up event occurs yPos  y-coordinate of the mouse position when mouse up event occurs Implements mitkWidgetModel.

float mitkAngleWidgetModel3D::GetAngleInDegree (   )

Get the value of angle in degree. Returns: Return value of this angle in degree.

float mitkAngleWidgetModel3D::GetAngleInRadian (   )

Get the value of angle in radian. Returns: Return value of this angle in radian.

virtual void mitkAngleWidgetModel3D::Pick (  const WidgetNames &  names  )  [virtual]

Maintain the selection status when this widget is picked. Parameters: names  a constant reference to an WidgerNames which contains the names of selected parts of this widget. Implements mitkWidgetModel.

virtual void mitkAngleWidgetModel3D::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkWidgetModel3D.

virtual void mitkAngleWidgetModel3D::Release (   )  [virtual]

Maintain the selection status when this widget is released. Implements mitkWidgetModel.

virtual int mitkAngleWidgetModel3D::Render (  mitkScene *  scene  )  [virtual]

Render this model. Parameters: scene  the pointer of an mitkScene in which this model will be shown Returns: Return 1 if this model is rendered successfully. Otherwise return 0. Reimplemented from mitkModel.

void mitkAngleWidgetModel3D::SetUnits (  float  units[3]  )  [inline]

Set unit length on axes. Parameters: units[0]  unit length in x-axis units[1]  unit length in y-axis units[2]  unit length in z-axis

void mitkAngleWidgetModel3D::SetUnits (  float  ux, float  uy, float  uz )  [inline]

Set unit length on axes. Parameters: ux  unit length in x-axis uy  unit length in y-axis uz  unit length in z-axis

virtual void mitkAngleWidgetModel3D::Update (   )  [virtual]

Update the parameters of the widget. Reimplemented from mitkWidgetModel3D.

---

The documentation for this class was generated from the following file:

• mitkAngleWidgetModel3D.h

---
