mitkDataModel Class Reference

mitkDataModel - abstract class used to represent an data entity in a rendering scene More...

#include <mitkDataModel.h>

Inherits mitkModel.

Inherited by mitkImageModel, mitkOrthogonalImageModel, mitkSurfaceModel, and mitkVolumeModel.

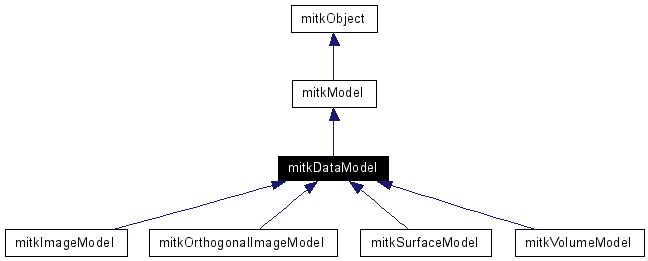

Inheritance diagram for mitkDataModel:

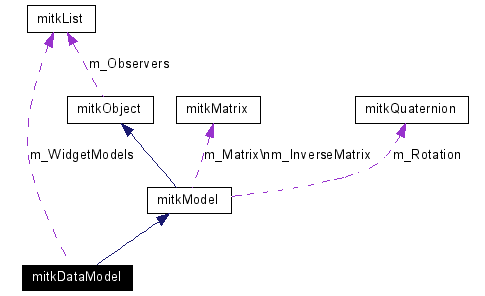

[legend]Collaboration diagram for mitkDataModel:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
void	AddWidget (mitkWidgetModel *widget)
void	UpdateWidgets ()
void	RemoveWidget (mitkWidgetModel *widget)
void	RemoveAllWidgets ()
int	GetWidgetCount ()
mitkWidgetModel *	GetWidgetModel (int index)
bool	IsEmpty ()

---

Detailed Description

mitkDataModel - abstract class used to represent an data entity in a rendering scene

mitkDataModel is an abstract class used to represent an entity (e.g. a surface or a volume) in a rendering scene.

---

Member Function Documentation

void mitkDataModel::AddWidget (  mitkWidgetModel *  widget  )

Attach a widget to this data model. Parameters: widget  pointer to an mitkWidgetModel to attach

int mitkDataModel::GetWidgetCount (   )

Get the count of the widget models attached to this data model. Returns: Return the count of the widget models attached to this data model.

mitkWidgetModel* mitkDataModel::GetWidgetModel (  int  index  )

Get the pointer to the widget model object indicated by index. Returns: Return the pointer to the widget model object, NULL if not found.

bool mitkDataModel::IsEmpty (   )  [inline]

Whether is this data model empty (i.e. no data has been set to this model). Returns: Return true if no data has been set to this model.

virtual void mitkDataModel::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkModel. Reimplemented in mitkImageModel, mitkOrthogonalImageModel, mitkSurfaceModel, and mitkVolumeModel.

void mitkDataModel::RemoveAllWidgets (   )

Detach all widgets from this data model.

void mitkDataModel::RemoveWidget (  mitkWidgetModel *  widget  )

Detach a widget from this data model. Parameters: widget  pointer to a mitkWidgetModel to detach

void mitkDataModel::UpdateWidgets (   )

Update the parameters of the widgets attached to this data model when the data has been changed.

---

The documentation for this class was generated from the following file:

• mitkDataModel.h

---
