mitkHETriangleMesh Class Reference

mitkHETriangleMesh - an abstract class for triangle meshes represented by Half Edges More...

#include <mitkHETriangleMesh.h>

Inherits mitkHEMesh.

Inherited by mitkHEICTriangleMesh, and mitkHEOoCTriangleMesh.

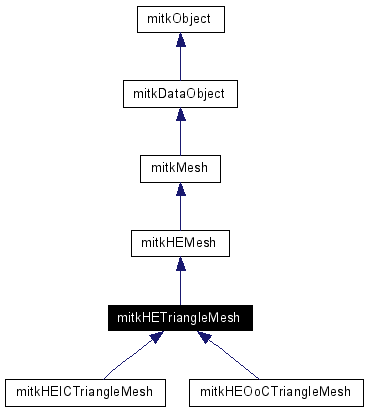

Inheritance diagram for mitkHETriangleMesh:

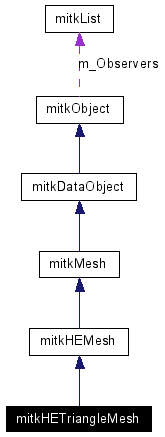

[legend]Collaboration diagram for mitkHETriangleMesh:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkHETriangleMesh ()
bool	CreateFrom (mitkTriangleMesh *mesh)
bool	CreateFrom (size_type vertNum, Vertex3f const *verts, size_type faceNum, TriangleFace const *faces, float const *boundingBox=NULL)
virtual int	GetDataObjectType ()
virtual void	Initialize ()
FaceHandle	AddFace (VertexHandle v0, VertexHandle v1, VertexHandle v2)
FaceHandle	AddFace (VertexHandle vertices[3])
bool	IsCollapseOk (HalfEdgeHandle he)
VertexHandle	Collapse (HalfEdgeHandle he)
HalfEdgeHandle	VertexSplit (VertexHandle v0, VertexHandle v1, VertexHandle vL, VertexHandle vR)
HalfEdgeHandle	VertexSplit (Vertex &vert, VertexHandle v1, VertexHandle vL, VertexHandle vR)
bool	IsFlipOk (EdgeHandle edge) const
void	Flip (EdgeHandle edge)

---

Detailed Description

mitkHETriangleMesh - an abstract class for triangle meshes represented by Half Edges

mitkHETriangleMesh is an abstract class for triangle meshes represented by Half Edges. This implementation of half edge references to OpenMesh written by Computer Graphics Group, RWTH Aachen.

See also:

mitkHEMesh, mitkHEICTriangleMesh (for in-core storage) and mitkOoCTriangleMesh (for out-of-core storage)

---

Constructor & Destructor Documentation

mitkHETriangleMesh::mitkHETriangleMesh (   )

Default constructor.

---

Member Function Documentation

FaceHandle mitkHETriangleMesh::AddFace (  VertexHandle  vertices[3]  )  [inline]

Add face. Parameters: vertices[0]  the handle of the first vertex vertices[1]  the handle of the second vertex vertices[2]  the handle of the third vertex Returns: Return the handle of the face added. Warning: Each VertexHandle must be valid, i.e. represents a existent vertex in the mesh (has been ``Add*''ed before).

FaceHandle mitkHETriangleMesh::AddFace (  VertexHandle  v0, VertexHandle  v1, VertexHandle  v2 )  [inline]

Add face. Parameters: v0  the handle of the first vertex v1  the handle of the second vertex v2  the handle of the third vertex Returns: Return the handle of the face added. Warning: Each VertexHandle must be valid, i.e. represents a existent vertex in the mesh (has been ``Add*''ed before).

VertexHandle mitkHETriangleMesh::Collapse (  HalfEdgeHandle  he  )

Collapse the from-vertex of a half edge into its to-vertex. Parameters: he  the handle of the half edge to be collapsed Returns: Return the handle of the vertex the half edge collapsed into.

bool mitkHETriangleMesh::CreateFrom (  size_type  vertNum, Vertex3f const *  verts, size_type  faceNum, TriangleFace const *  faces, float const *  boundingBox = NULL )

Create mitkHETriangleMesh object from the arrays of vertices and faces. Parameters: vertNum  number of vertices in the vertex array verts  the vertex array faceNum  number of faces in the face array faces  the face array boundingBox  the 6-float array for bounding box Returns: Return true if this operation succeed, otherwise return false. Note: Each Vertex3f struct contains 3 float values for coordinates and 3 float values for normal. Each TriangleFace struct contains 3 indices to vertex array. If boundingBox is NULL, this function will calculate the actual bounding box itself.

bool mitkHETriangleMesh::CreateFrom (  mitkTriangleMesh *  mesh  )

Create mitkHETriangleMesh object from a mitkTriangleMesh object which is not based on half edge structure. Parameters: mesh  the pointer to a mitkTriangleMesh object this mitkHETriangleMesh object is created from Returns: Return true if this operation succeed, otherwise return false.

void mitkHETriangleMesh::Flip (  EdgeHandle  edge  )

Flip edge. Parameters: edge  the handle of the edge to be flipped

virtual int mitkHETriangleMesh::GetDataObjectType (   )  [inline, virtual]

Return what type of data object this is. Returns: Return the type of this data object.

virtual void mitkHETriangleMesh::Initialize (   )  [virtual]

Make the output data ready for new data to be inserted. Reimplemented from mitkHEMesh. Reimplemented in mitkHEICTriangleMesh, and mitkHEOoCTriangleMesh.

bool mitkHETriangleMesh::IsCollapseOk (  HalfEdgeHandle  he  )

Check whether collapsing half edge he is ok or would lead to topological inconsistencies. Parameters: he  the handle of the half edge to be tested Returns: Return true if collapsing is ok, otherwise return false.

bool mitkHETriangleMesh::IsFlipOk (  EdgeHandle  edge  )  const

Check whether flipping edge is topologically correct. Parameters: edge  the handle of the edge to be flipped Returns: Return true if flipping is ok, otherwise return false.

virtual void mitkHETriangleMesh::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkHEMesh. Reimplemented in mitkHEICTriangleMesh, and mitkHEOoCTriangleMesh.

HalfEdgeHandle mitkHETriangleMesh::VertexSplit (  Vertex &  vert, VertexHandle  v1, VertexHandle  vL, VertexHandle  vR )  [inline]

Split vertex v1 into edge v0v1. It is the inverse operation to Collapse(). Parameters: v0  a new vertex v1  the handle of the vertex to be splited vL  the handle of the vertex to the left hand of the splited vertex vL  the handle of the vertex to the right hand of the splited vertex Returns: Return the handle of the half edge from v0 to v1.

HalfEdgeHandle mitkHETriangleMesh::VertexSplit (  VertexHandle  v0, VertexHandle  v1, VertexHandle  vL, VertexHandle  vR )

Split vertex v1 into edge v0v1. It is the inverse operation to Collapse(). Parameters: v0  the handle of a new vertex v1  the handle of the vertex to be splited vL  the handle of the vertex to the left hand of the splited vertex vL  the handle of the vertex to the right hand of the splited vertex Returns: Return the handle of the half edge from v0 to v1. Warning: v0 must be valid, i.e. represents a existent vertex in the mesh (has been ``Add*''ed before).

---

The documentation for this class was generated from the following file:

• mitkHETriangleMesh.h

---
