mitkTriangleMesh Class Reference

mitkTriangleMesh - an abstract class for triangle meshes More...

#include <mitkTriangleMesh.h>

Inherits mitkMesh.

Inherited by mitkICTriangleMesh, and mitkOoCTriangleMesh.

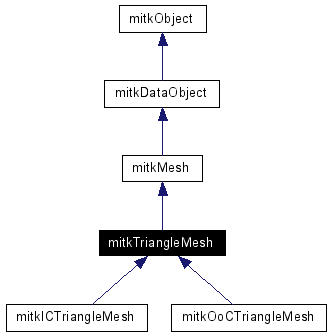

Inheritance diagram for mitkTriangleMesh:

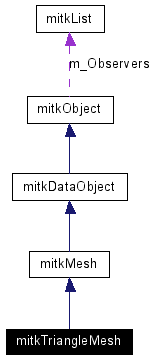

[legend]Collaboration diagram for mitkTriangleMesh:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkTriangleMesh ()
bool	CreateFrom (mitkHETriangleMesh *mesh)
virtual int	GetDataObjectType () const
virtual void	Initialize ()
virtual void	ShallowCopy (mitkDataObject *src)
virtual void	DeepCopy (mitkDataObject *src)
virtual size_type	GetVertexNumber () const
virtual size_type	GetFaceNumber () const
index_type	AddFace (TriangleFace &face)

---

Detailed Description

mitkTriangleMesh - an abstract class for triangle meshes

mitkTriangleMesh is an abstract class for triangle meshes.

See also:

mitkICTriangleMesh and mitkOoCTriangleMesh

---

Constructor & Destructor Documentation

mitkTriangleMesh::mitkTriangleMesh (   )

Default constructor of this class.

---

Member Function Documentation

index_type mitkTriangleMesh::AddFace (  TriangleFace &  face  )  [inline]

Add a triangle face. Parameters: face  the face to add Returns: Return the index of the face added. Note: The struct TriangleFace is equal to follows: struct TriangleFace { enum { vertNum = 3 }; index_type verts[vertNum]; }; Warning: Each index in the ``verts'' array of the face must be valid, i.e. represents a existent vertex in the mesh (has been added before). See also: mitkGeometryTypes.h Reimplemented from mitkMesh.

bool mitkTriangleMesh::CreateFrom (  mitkHETriangleMesh *  mesh  )

Create mitkTriangleMesh object from a mitkHETriangleMesh object which is based on half edge structure. Parameters: mesh  the pointer to a mitkHETriangleMesh object this mitkTriangleMesh object is created from Returns: Return true if this operation succeed, otherwise return false.

virtual void mitkTriangleMesh::DeepCopy (  mitkDataObject *  src  )  [virtual]

Deep copy. Parameters: src  pointer to the source mitkDataObject Reimplemented from mitkMesh. Reimplemented in mitkICTriangleMesh, and mitkOoCTriangleMesh.

virtual int mitkTriangleMesh::GetDataObjectType (   )  const [inline, virtual]

Return what type of data object this is. Returns: Return the type of this data object. Reimplemented from mitkMesh. Reimplemented in mitkICTriangleMesh, and mitkOoCTriangleMesh.

virtual size_type mitkTriangleMesh::GetFaceNumber (   )  const [inline, virtual]

Get the mesh's face number. Returns: Return the number of faces. Implements mitkMesh.

virtual size_type mitkTriangleMesh::GetVertexNumber (   )  const [inline, virtual]

Get the mesh's vertex number. Returns: Return the number of vertices. Implements mitkMesh.

virtual void mitkTriangleMesh::Initialize (   )  [virtual]

Make the output data ready for new data to be inserted. Reimplemented from mitkMesh. Reimplemented in mitkICTriangleMesh, and mitkOoCTriangleMesh.

virtual void mitkTriangleMesh::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkMesh. Reimplemented in mitkICTriangleMesh, and mitkOoCTriangleMesh.

virtual void mitkTriangleMesh::ShallowCopy (  mitkDataObject *  src  )  [virtual]

Shallowcopy. Parameters: src  pointer to the source mitkDataObject Reimplemented from mitkMesh. Reimplemented in mitkICTriangleMesh, and mitkOoCTriangleMesh.

---

The documentation for this class was generated from the following file:

• mitkTriangleMesh.h

---
