mitkICTriangleMesh Class Reference

mitkICTriangleMesh - a concrete class for in-core triangle meshes More...

#include <mitkICTriangleMesh.h>

Inherits mitkTriangleMesh.

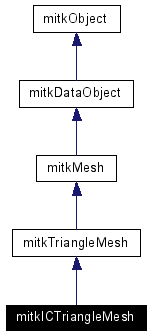

Inheritance diagram for mitkICTriangleMesh:

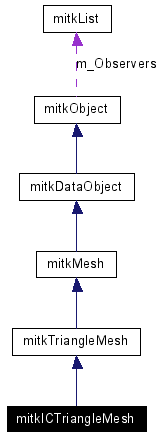

[legend]Collaboration diagram for mitkICTriangleMesh:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkICTriangleMesh ()
virtual int	GetDataObjectType () const
virtual void	Initialize ()
virtual unsigned long long	GetActualMemorySize () const
virtual void	ShallowCopy (mitkDataObject *src)
virtual void	DeepCopy (mitkDataObject *src)
virtual void	SetVertexNumber (size_type number)
virtual void	SetFaceNumber (size_type number)
virtual float *	GetVertexData ()
virtual index_type *	GetFaceData ()
virtual void	ReverseNormals ()
virtual bool	TestClockwise ()

---

Detailed Description

mitkICTriangleMesh - a concrete class for in-core triangle meshes

mitkICTriangleMesh is a concrete implementation of triangle mesh, for representation of a in-core 3D object (can be loaded to the main memory entirely). It is made up of triangle faces.

See also:

mitkOoCTriangleMesh for out-of-core implementation of triangle mesh

---

Constructor & Destructor Documentation

mitkICTriangleMesh::mitkICTriangleMesh (   )

Default constructor of this class.

---

Member Function Documentation

virtual void mitkICTriangleMesh::DeepCopy (  mitkDataObject *  src  )  [virtual]

Deep copy. Parameters: src  pointer to the source mitkDataObject Reimplemented from mitkTriangleMesh.

virtual unsigned long long mitkICTriangleMesh::GetActualMemorySize (   )  const [virtual]

Get the actual size of the data in bytes. Returns: Return the actual size of the data in bytes. Implements mitkDataObject.

virtual int mitkICTriangleMesh::GetDataObjectType (   )  const [inline, virtual]

Return what type of data object this is. Returns: Return the type of this data object. Reimplemented from mitkTriangleMesh.

virtual index_type* mitkICTriangleMesh::GetFaceData (   )  [inline, virtual]

Get data pointer of this face data. Returns: Return a unsigned int pointer to the face data (indices to vertices). Implements mitkMesh.

virtual float* mitkICTriangleMesh::GetVertexData (   )  [inline, virtual]

Get data pointer of this vertex data. Returns: Return a float pointer to the vertex data. Implements mitkMesh.

virtual void mitkICTriangleMesh::Initialize (   )  [virtual]

Make the output data ready for new data to be inserted. Reimplemented from mitkTriangleMesh.

virtual void mitkICTriangleMesh::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkTriangleMesh.

virtual void mitkICTriangleMesh::ReverseNormals (   )  [virtual]

Reverse normals. Reimplemented from mitkMesh.

virtual void mitkICTriangleMesh::SetFaceNumber (  size_type  number  )  [virtual]

Set the mesh's faces' number and allocate memory. Parameters: number  the number of faces Implements mitkMesh.

virtual void mitkICTriangleMesh::SetVertexNumber (  size_type  number  )  [virtual]

Set the mesh's vertices' number and allocate memory. Parameters: number  the number of vertices Implements mitkMesh.

virtual void mitkICTriangleMesh::ShallowCopy (  mitkDataObject *  src  )  [virtual]

Shallowcopy. Parameters: src  pointer to the source mitkDataObject Reimplemented from mitkTriangleMesh.

virtual bool mitkICTriangleMesh::TestClockwise (   )  [virtual]

Test the orientation of front-facing triangles. Returns: Return true if the orientation of front-facing triangles is clockwise, otherwise return false. Implements mitkMesh.

---

The documentation for this class was generated from the following file:

• mitkICTriangleMesh.h

---
