mitkHEICTriangleMesh Class Reference

mitkHEICTriangleMesh - a concrete class for in-core triangle meshes represented by Half Edges More...

#include <mitkHEICTriangleMesh.h>

Inherits mitkHETriangleMesh.

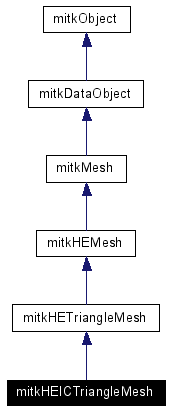

Inheritance diagram for mitkHEICTriangleMesh:

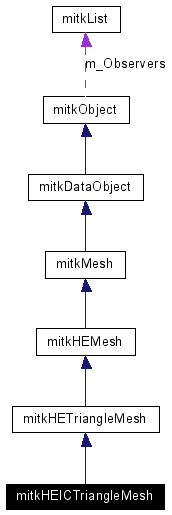

[legend]Collaboration diagram for mitkHEICTriangleMesh:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkHEICTriangleMesh ()
virtual int	GetDataObjectType () const
virtual void	Initialize ()
virtual unsigned long long	GetActualMemorySize () const
virtual void	ShallowCopy (mitkDataObject *src)
virtual void	DeepCopy (mitkDataObject *src)
virtual void	SetVertexNumber (size_type number)
virtual void	SetFaceNumber (size_type number)
virtual Vertex &	GetVertex (VertexHandle v) const
virtual Edge &	GetEdge (EdgeHandle e) const
virtual Edge &	GetEdge (HalfEdgeHandle he) const
virtual HalfEdge &	GetHalfEdge (HalfEdgeHandle he) const
virtual Face &	GetFace (FaceHandle f) const
virtual VertexHandle	GetHandle (Vertex const &vert) const
virtual EdgeHandle	GetHandle (Edge const &edge) const
virtual HalfEdgeHandle	GetHandle (HalfEdge const &he) const
virtual FaceHandle	GetHandle (Face const &face) const
virtual float *	GetVertexData ()
virtual index_type *	GetFaceData ()
void	ClearTempVertArray ()
void	ClearTempFaceArray ()

---

Detailed Description

mitkHEICTriangleMesh - a concrete class for in-core triangle meshes represented by Half Edges

mitkHEICTriangleMesh is a concrete class for in-core triangle meshes represented by Half Edges. It supports in-core data sets which can be loaded into the main memory entirely.

See also:

mitkHEMesh and mitkHETriangleMesh for access interfaces

mitkHEOoCTriangleMesh for out-of-core data set

---

Constructor & Destructor Documentation

mitkHEICTriangleMesh::mitkHEICTriangleMesh (   )

Default constructor.

---

Member Function Documentation

void mitkHEICTriangleMesh::ClearTempFaceArray (   )

Clear the temporary memory allocated in the function GetFaceData(). Warning: Do not call this function until you no longer use the face data gotten from GetFaceData();

void mitkHEICTriangleMesh::ClearTempVertArray (   )

Clear the temporary memory allocated in the function GetVertexData(). Warning: Do not call this function until you no longer use the vertex data gotten from GetVertexData();

virtual void mitkHEICTriangleMesh::DeepCopy (  mitkDataObject *  src  )  [virtual]

Deep copy. Parameters: src  pointer to the source mitkDataObject Reimplemented from mitkHEMesh.

virtual unsigned long long mitkHEICTriangleMesh::GetActualMemorySize (   )  const [virtual]

Get the actual size of the data in bytes. Returns: Return the actual size of the data in bytes. Implements mitkDataObject.

virtual int mitkHEICTriangleMesh::GetDataObjectType (   )  const [inline, virtual]

Return what type of data object this is. Returns: Return the type of this data object. Reimplemented from mitkHEMesh.

virtual Edge& mitkHEICTriangleMesh::GetEdge (  HalfEdgeHandle  he  )  const [inline, virtual]

Get edge by half edge handle. Parameters: he  one half edge handle of the required edge Returns: Return the reference to the required edge. Note: An edge is composed by two opposite half edges.

virtual Edge& mitkHEICTriangleMesh::GetEdge (  EdgeHandle  e  )  const [inline, virtual]

Get edge by handle. Parameters: e  the handle of the required edge Returns: Return the reference to the required edge.

virtual Face& mitkHEICTriangleMesh::GetFace (  FaceHandle  f  )  const [inline, virtual]

Get face by handle. Parameters: f  the handle of the required face Returns: Return the reference to the required face.

virtual index_type* mitkHEICTriangleMesh::GetFaceData (   )  [virtual]

Get data pointer of this face data. This is for compatibility with mitkTriangleMesh which is used more frequently. Returns: Return a unsigned int pointer to the face data (indices to vertices). Warning: This function is obsolete. It is provided to keep old codes working. We strongly advise against using it in new codes; DO NOT delete the pointer you got from this function. If you must release the memory, call ClearTempVertArray() to do this. Implements mitkMesh.

virtual HalfEdge& mitkHEICTriangleMesh::GetHalfEdge (  HalfEdgeHandle  he  )  const [inline, virtual]

Get half edge by handle. Parameters: he  the handle of the required half edge Returns: Return the reference to the required half edge.

virtual FaceHandle mitkHEICTriangleMesh::GetHandle (  Face const &  face  )  const [inline, virtual]

Get the handle of a face. Parameters: face  the reference to the face Returns: Return the handle of the face.

virtual HalfEdgeHandle mitkHEICTriangleMesh::GetHandle (  HalfEdge const &  he  )  const [inline, virtual]

Get the handle of a half edge. Parameters: he  the reference to the half edge Returns: Return the handle of the half edge.

virtual EdgeHandle mitkHEICTriangleMesh::GetHandle (  Edge const &  edge  )  const [inline, virtual]

Get the handle of an edge. Parameters: edge  the reference to the edge Returns: Return the handle of the edge.

virtual VertexHandle mitkHEICTriangleMesh::GetHandle (  Vertex const &  vert  )  const [inline, virtual]

Get the handle of a vertex. Parameters: vert  the reference to the vertex Returns: Return the handle of the vertex.

virtual Vertex& mitkHEICTriangleMesh::GetVertex (  VertexHandle  v  )  const [inline, virtual]

Get vertex by handle. Parameters: v  the handle of the required vertex Returns: Return the reference to the required vertex.

virtual float* mitkHEICTriangleMesh::GetVertexData (   )  [virtual]

Get data pointer of this vertex data. This is for compatibility with mitkTriangleMesh which is used more frequently. Returns: Return a float pointer to the vertex data. Warning: This function is obsolete. It is provided to keep old codes working. We strongly advise against using it in new codes. Implements mitkMesh.

virtual void mitkHEICTriangleMesh::Initialize (   )  [virtual]

Make the output data ready for new data to be inserted. Reimplemented from mitkHETriangleMesh.

virtual void mitkHEICTriangleMesh::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkHETriangleMesh.

virtual void mitkHEICTriangleMesh::SetFaceNumber (  size_type  number  )  [virtual]

Set the faces' number and allocate memory. Parameters: number  the number of faces Warning: This function is obsolete. It is provided to keep old codes working. We strongly advise against using it in new codes. Implements mitkMesh.

virtual void mitkHEICTriangleMesh::SetVertexNumber (  size_type  number  )  [virtual]

Set the vertices' number and allocate memory. Parameters: number  the number of vertices Note: This function is obsolete. It is provided to keep old codes working. We strongly advise against using it in new codes. Implements mitkMesh.

virtual void mitkHEICTriangleMesh::ShallowCopy (  mitkDataObject *  src  )  [virtual]

Shallowcopy. Parameters: src  pointer to the source mitkDataObject Reimplemented from mitkHEMesh.

---

The documentation for this class was generated from the following file:

• mitkHEICTriangleMesh.h

---
