mitkPointSetRegistrationFilter Class Reference

mitkPointSetRegistrationFilter - a class for the implementation of point sets based registration framework. More...

#include <mitkPointSetRegistrationFilter.h>

Inherits mitkRegistrationFilter.

Inherited by mitkLandmarkRegistrationFilter.

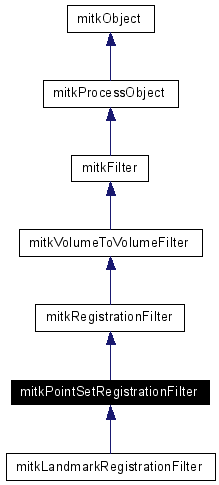

Inheritance diagram for mitkPointSetRegistrationFilter:

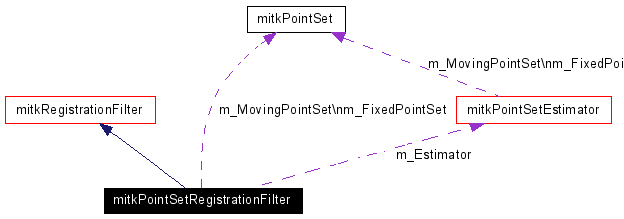

[legend]Collaboration diagram for mitkPointSetRegistrationFilter:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
	mitkPointSetRegistrationFilter ()
void	SetFixedPointSet (mitkPointSet *fixedPointSet)
void	SetMovingPointSet (mitkPointSet *movingPointSet)
void	SetFixedPointSet (vector< double > *fixedPointSet, unsigned int dim=3)
void	SetMovingPointSet (vector< double > *movingPointSet, unsigned int dim=3)
void	SetFixedPointSet (double *fixedPointSet, unsigned int arraylength, unsigned int dim=3)
void	SetMovingPointSet (double *movingPointSet, unsigned int arraylength, unsigned int dim=3)
unsigned int	GetNumberOfFixedPoints ()
unsigned int	GetNumberOfMovingPoints ()
virtual mitkTransform *	GetTransform ()
virtual mitkMetric *	GetMetric ()
virtual mitkOptimizer *	GetOptimizer ()
mitkPointSetEstimator *	GetEstimator ()
void	SetEstimator (mitkPointSetEstimator *estimator)

---

Detailed Description

mitkPointSetRegistrationFilter - a class for the implementation of point sets based registration framework.

mitkPointSetRegistrationFilter is a class for the implementation of point sets based registration framework. There are four generic components in point set registration framework. A optimizer matches two point sets and gets their correspondences. A estimator computes transform parameters directly based on the matches. A transform performs the transform to moving point set. A metric gets the similarity between the two point sets.

---

Constructor & Destructor Documentation

mitkPointSetRegistrationFilter::mitkPointSetRegistrationFilter (   )

Constructor.

---

Member Function Documentation

mitkPointSetEstimator* mitkPointSetRegistrationFilter::GetEstimator (   )

Get the estimation method. Returns: Return the pointer to the estimator object.

virtual mitkMetric* mitkPointSetRegistrationFilter::GetMetric (   )  [virtual]

Get the metric method. Returns: Return the pointer to the metric object. Reimplemented from mitkRegistrationFilter.

unsigned int mitkPointSetRegistrationFilter::GetNumberOfFixedPoints (   )  [inline]

Get the Number of Points in Fixed Point Set. Returns: Return the number of points.

unsigned int mitkPointSetRegistrationFilter::GetNumberOfMovingPoints (   )  [inline]

Get the Number of Points in Moving Point Set. Returns: Return the number of points.

virtual mitkOptimizer* mitkPointSetRegistrationFilter::GetOptimizer (   )  [virtual]

Get the optimization method. Returns: Return the pointer to the optimizer object. Reimplemented from mitkRegistrationFilter.

virtual mitkTransform* mitkPointSetRegistrationFilter::GetTransform (   )  [virtual]

Get the transform method. Returns: Return the pointer to the transform object. Reimplemented from mitkRegistrationFilter.

virtual void mitkPointSetRegistrationFilter::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkRegistrationFilter. Reimplemented in mitkLandmarkRegistrationFilter.

void mitkPointSetRegistrationFilter::SetEstimator (  mitkPointSetEstimator *  estimator  )  [inline]

Set the estimation method Parameters: estimator  The pointer to the estimator.

void mitkPointSetRegistrationFilter::SetFixedPointSet (  double *  fixedPointSet, unsigned int  arraylength, unsigned int  dim = 3 )

Set the Fixed Point Set using 1d array as input. Parameters: fixedPointSet  The pointer to the fixed point set. arraylength  The size of point set array. dim  The point set dimension.

void mitkPointSetRegistrationFilter::SetFixedPointSet (  vector< double > *  fixedPointSet, unsigned int  dim = 3 )

Set the Fixed Point Set using vector as input. Parameters: fixedPointSet  The pointer to the fixed point set. dim  The point set dimension.

void mitkPointSetRegistrationFilter::SetFixedPointSet (  mitkPointSet *  fixedPointSet  )

Set the Fixed Point Set using vector as input. Parameters: fixedPointSet  The pointer to the fixed point set.

void mitkPointSetRegistrationFilter::SetMovingPointSet (  double *  movingPointSet, unsigned int  arraylength, unsigned int  dim = 3 )

Set the Moving Point Set using 1d array as input. Parameters: movingPointSet  The pointer to the moving point set. arraylength  The size of point set array. dim  The point set dimension.

void mitkPointSetRegistrationFilter::SetMovingPointSet (  vector< double > *  movingPointSet, unsigned int  dim = 3 )

Set the Moving Point Set using vector as input. Parameters: movingPointSet  The pointer to the moving point set. dim  The point set dimension.

void mitkPointSetRegistrationFilter::SetMovingPointSet (  mitkPointSet *  movingPointSet  )

Set the Moving Point Set using vector as input. Parameters: movingPointSet  The pointer to the moving point set.

---

The documentation for this class was generated from the following file:

• mitkPointSetRegistrationFilter.h

---
