mitkMeshToMeshFilter Class Reference

mitkMeshToMeshFilter - abstract class specifies interface for mesh to mesh filter More...

#include <mitkMeshToMeshFilter.h>

Inherits mitkFilter.

Inherited by mitkMeshTransform, and mitkTriangleMeshSimplification.

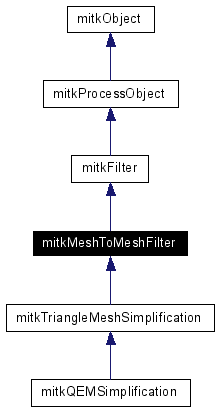

Inheritance diagram for mitkMeshToMeshFilter:

Inheritance graph
Collaboration diagram for mitkMeshToMeshFilter:

Collaboration graph
List of all members.

Public Member Functions

virtual void PrintSelf (ostream &os)
void SetInput (mitkMesh *mesh)
mitkMeshGetInput ()
void SetOoCSupport (char const *diskPath=mitkOoCGlobalSettings::DiskCachePath, unsigned int bufBlockNum=mitkOoCGlobalSettings::BufferedSliceNumber, bool supportOoC=true)
mitkMeshGetOutput ()
void SetOutputMesh (mitkMesh *mesh)

Detailed Description

mitkMeshToMeshFilter - abstract class specifies interface for mesh to mesh filter

mitkMeshToMeshFilter is an abstract class specifies interface for mesh to mesh filter. This type of filter has a mesh input and generates a mesh as output.

Member Function Documentation

mitkMesh* mitkMeshToMeshFilter::GetInput  )  [inline]

Get the input mesh

Return the input mesh.

mitkMesh* mitkMeshToMeshFilter::GetOutput  )  [inline]

Get the output mesh

Return the output mesh.

virtual void mitkMeshToMeshFilter::PrintSelf ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose.

os The specified ostream to output information.

Reimplemented from mitkFilter.

Reimplemented in mitkQEMSimplification, and mitkTriangleMeshSimplification.

void mitkMeshToMeshFilter::SetInput mitkMesh mesh  )  [inline]

Set the input mesh.

mesh specify the input mesh

void mitkMeshToMeshFilter::SetOoCSupport char const *  diskPath = mitkOoCGlobalSettings::DiskCachePath,
unsigned int  bufBlockNum = mitkOoCGlobalSettings::BufferedSliceNumber,
bool  supportOoC = true

Let the reader support out-of-core mesh data.

diskPath the path in the disk to cache the mesh data
bufSliceNum the number of slices to cache in the main memory
supportOoC whether to turn on out-of-core support
The parameter diskPath must be specified (not NULL) if you really want to turn on out-of-core support, if not, the value of supportOoC will be ignored even if it is set to true.

void mitkMeshToMeshFilter::SetOutputMesh mitkMesh mesh  )

Set user defined output mesh to replace the default generated mesh.

mesh the new output mesh object to be set

The documentation for this class was generated from the following file:
