mitkQEMSimplification Class Reference

mitkQEMSimplification - an implementation for the simplification algorithm using Quadric Error Metrics (QEM) More...

#include <mitkQEMSimplification.h>

Inherits mitkTriangleMeshSimplification.

Inheritance diagram for mitkQEMSimplification:

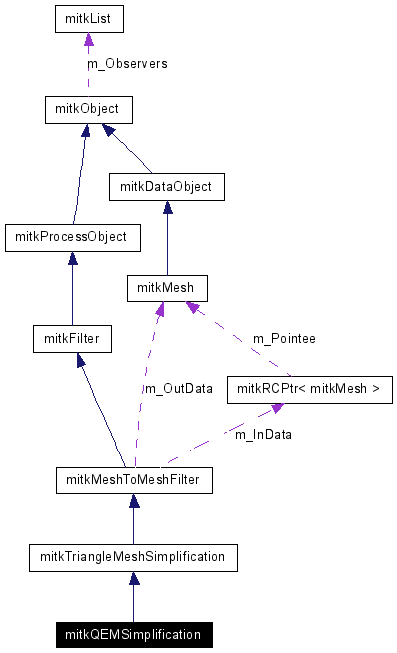

[legend]Collaboration diagram for mitkQEMSimplification:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
void	SetMeshingPenalty (double mp)
double	GetMeshingPenalty ()
void	SetVertexDegreeLimit (size_type vdl)
size_type	GetVertexDegreeLimit ()
void	SetCompactnessRatio (double cr)
double	GetCompactnessRatio ()
void	SetLocalValidityThreshold (double lvt)
double	GetLocalValidityThreshold ()

---

Detailed Description

mitkQEMSimplification - an implementation for the simplification algorithm using Quadric Error Metrics (QEM)

mitkQEMSimplification is an implementation for the simplification algorithm using Quadric Error Metrics (QEM). The implementation is based on the algorithm presented in following papers written by Michael Garland and Paul S. Heckbert and their implementation in QSlim Simplification Software:

• Michael Garland and Paul S. Heckbert, Surface Simplification Using Quadric Error Metrics, in Proceedings of SIGGARPH'97, pp. 209-216, 1997.
• Michael Garland and Paul S. Heckbert, Simplifying Surfaces with Color and Texture using Quadric Error Metrics, in Proceedings of IEEE Visualization'98, pp. 263-269, 1998.

Thanks for their excellent works.

---

Member Function Documentation

double mitkQEMSimplification::GetCompactnessRatio (   )  [inline]

Get the compactness ratio for triangle compactness check. Returns: Return the compactness ratio.

double mitkQEMSimplification::GetLocalValidityThreshold (   )  [inline]

Get the local validity threshold for local validity check. Returns: Return the local validity threshold.

double mitkQEMSimplification::GetMeshingPenalty (   )  [inline]

Get meshing penalty. Returns: Return the meshing penalty.

size_type mitkQEMSimplification::GetVertexDegreeLimit (   )  [inline]

Set the limit of the vertex degree. Returns: Return the limit of the vertex degree.

virtual void mitkQEMSimplification::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkTriangleMeshSimplification.

void mitkQEMSimplification::SetCompactnessRatio (  double  cr  )  [inline]

Set the compactness ratio for triangle compactness check. The default value is 0.0. Parameters: cr  the compactness ratio

void mitkQEMSimplification::SetLocalValidityThreshold (  double  lvt  )  [inline]

Set the local validity threshold for local validity check. The default value is 0.0. Parameters: lvt  the local validity threshold

void mitkQEMSimplification::SetMeshingPenalty (  double  mp  )  [inline]

Set meshing penalty. The default value is 1.0. Parameters: mp  meshing penalty (>1.0 will enable checks for the mesh penalties)

void mitkQEMSimplification::SetVertexDegreeLimit (  size_type  vdl  )  [inline]

Set the limit of the vertex degree after simplification. The default value is 24. Parameters: vdl  the vertex degree limit

---

The documentation for this class was generated from the following file:

• mitkQEMSimplification.h

---
