mitkMeshReader Class Reference

mitkMeshReader - an abstract class represents a mesh reader to read mesh files More...

#include <mitkMeshReader.h>

Inherits mitkReader.

Inherited by mitkPLYReader, and mitkSTLReader.

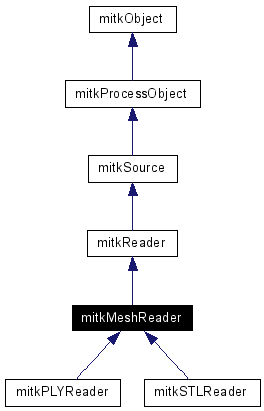

Inheritance diagram for mitkMeshReader:

Inheritance graph

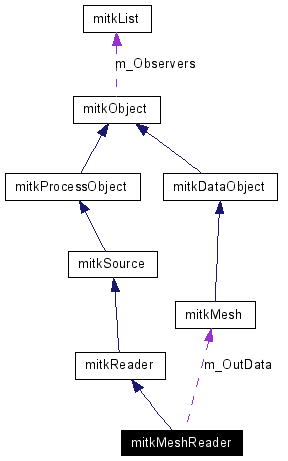

Collaboration diagram for mitkMeshReader:

Collaboration graph
List of all members.

Public Member Functions

virtual void PrintSelf (ostream &os)
void SetOoCSupport (char const *diskPath=mitkOoCGlobalSettings::DiskCachePath, unsigned int bufBlockNum=mitkOoCGlobalSettings::BufferedSliceNumber, bool supportOoC=true)
mitkMeshGetOutput ()

Detailed Description

mitkMeshReader - an abstract class represents a mesh reader to read mesh files

mitkMeshReader is an abstract class represents a mesh reader to read mesh files. To use a concrete mesh reader, the code snippet is:

    mitkSomeMeshReader *aReader = new mitkSomeMeshReader;
    aReader->AddFileName(filename); //Only require one file name
    if (aReader->Run())
        mitkMesh *aMesh = aReader->GetOutput();
        Using aMesh

Member Function Documentation

mitkMesh* mitkMeshReader::GetOutput  )

Get the output mesh the reader has read.

the output volume.

virtual void mitkMeshReader::PrintSelf ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose.

os The specified ostream to output information.

Reimplemented from mitkReader.

Reimplemented in mitkPLYReader, and mitkSTLReader.

void mitkMeshReader::SetOoCSupport char const *  diskPath = mitkOoCGlobalSettings::DiskCachePath,
unsigned int  bufBlockNum = mitkOoCGlobalSettings::BufferedSliceNumber,
bool  supportOoC = true

Let the reader support out-of-core mesh data.

diskPath the path in the disk to cache the mesh data
bufSliceNum the number of slices to cache in the main memory
supportOoC whether to turn on out-of-core support
The parameter diskPath must be specified (not NULL) if you really want to turn on out-of-core support, if not, the value of supportOoC will be ignored even if it is set to true.

The documentation for this class was generated from the following file:
