mitkSPMD Class Reference

#include <mitkSPMD.h>

Inherits mitkObject.

Inherited by mitkSPMDDelegate.

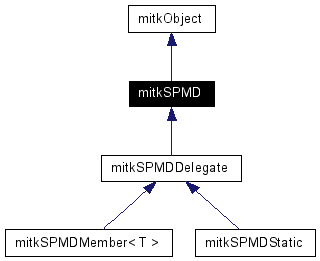

Inheritance diagram for mitkSPMD:

[legend]Collaboration diagram for mitkSPMD:

[legend]List of all members.

Public Member Functions
void	SetNumberOfThreads (int NumberOfThreads)
int	GetNumberOfThreads () const
void	RunSPMD ()
Static Public Member Functions
static int	GetGlobalDefaultNumberOfThreads ()

---

Detailed Description

mitkSPMD - A threading tool that implements a SPMD (Single Program Multiple Data) style multi-thread execution.

mitkSPMD is a threading tool that implements a SPMD (Single Program Multiple Data) style multi-thread execution. mitkSPMD will create a number of threads, and each thread will end up calling the virtual protected function ThreadExecute with their unique identifier, which can be used to decide the part of data to be processed, since the memory is shared among threads.

---

Member Function Documentation

static int mitkSPMD::GetGlobalDefaultNumberOfThreads (   )  [static]

Acquire the default number of threads according to the number of hardware processors(cores) Returns: Return the global default number of threads

int mitkSPMD::GetNumberOfThreads (   )  const [inline]

Get the number of threads to be created Returns: return the number of threads to be created the default value is the GlobalDefaultNumberOfThreads

void mitkSPMD::RunSPMD (   )

Perform the SPMD execution

void mitkSPMD::SetNumberOfThreads (  int  NumberOfThreads  )

Set the number of threads to be created Parameters: NumberOfThreads  Specify the number of threads to be created must be greater or equal than 1, and the default value is the GlobalDefaultNumberOfThreads

---

The documentation for this class was generated from the following file:

• mitkSPMD.h

---
