mitkFanBeamReconFromCirle Class Reference

mitkFanBeamReconFromCirle - concret class implement parallel-beam reconstruction using filtered backprojection Algorithm. More...

#include <mitkFanBeamReconFromCirle.h>

Inherits mitkCTReconstructionFilter.

Inherited by mitkFBFBPReconCF, mitkFBFBPReconCFCPU, and mitkFBFBPReconCFGPU.

Inheritance diagram for mitkFanBeamReconFromCirle:

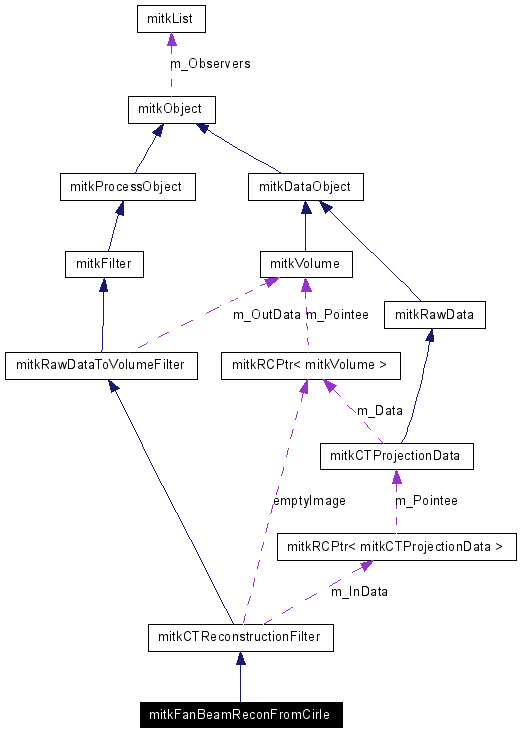

[legend]Collaboration diagram for mitkFanBeamReconFromCirle:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
float	GetDetectorMove ()
void	SetDetectorMove (float m)
void	SetDetectorLength (double m)
double	GetDetectorLength ()
void	SetFov (double *m)
double *	GetFov ()
void	SetSourceToCenterDistance (double m)
double	GetSourceToCenterDistance () const
void	SetSourceToDetectorDistance (double m)
double	GetSourceToDetectorDistance () const

---

Detailed Description

mitkFanBeamReconFromCirle - concret class implement parallel-beam reconstruction using filtered backprojection Algorithm.

mitkFanBeamReconFromCirle - concret class implement parallel-beam reconstruction using filtered backprojection Algorithm.

---

Member Function Documentation

double mitkFanBeamReconFromCirle::GetDetectorLength (   )  [inline]

///////////////////////////////////////////////////////////////////// Get the length of detector

float mitkFanBeamReconFromCirle::GetDetectorMove (   )  [inline]

??

double* mitkFanBeamReconFromCirle::GetFov (   )  [inline]

Get field of view [0] left of x axis [1] right of x axis [2] bottom of y axis [3] top of y axis

double mitkFanBeamReconFromCirle::GetSourceToCenterDistance (   )  const [inline]

Get the distance between x-ray source and rotate center

double mitkFanBeamReconFromCirle::GetSourceToDetectorDistance (   )  const [inline]

Get the distance between x-ray source and detector center

virtual void mitkFanBeamReconFromCirle::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkCTReconstructionFilter. Reimplemented in mitkFBFBPReconCF, mitkFBFBPReconCFCPU, and mitkFBFBPReconCFGPU.

void mitkFanBeamReconFromCirle::SetDetectorLength (  double  m  )  [inline]

Set the length of detector

void mitkFanBeamReconFromCirle::SetDetectorMove (  float  m  )  [inline]

??

void mitkFanBeamReconFromCirle::SetFov (  double *  m  )  [inline]

Set field of view [0] left of x axis [1] right of x axis [2] bottom of y axis [3] top of y axis

void mitkFanBeamReconFromCirle::SetSourceToCenterDistance (  double  m  )  [inline]

Set the distance between x-ray source and rotate center

void mitkFanBeamReconFromCirle::SetSourceToDetectorDistance (  double  m  )  [inline]

Set the distance between x-ray source and detector center

---

The documentation for this class was generated from the following file:

• mitkFanBeamReconFromCirle.h

---
