mitkSplatCamera Class Reference

mitkSplatCamera - a camera in 3D scene More...

#include <mitkSplatCamera.h>

Inherits mitkCamera.

Inheritance diagram for mitkSplatCamera:

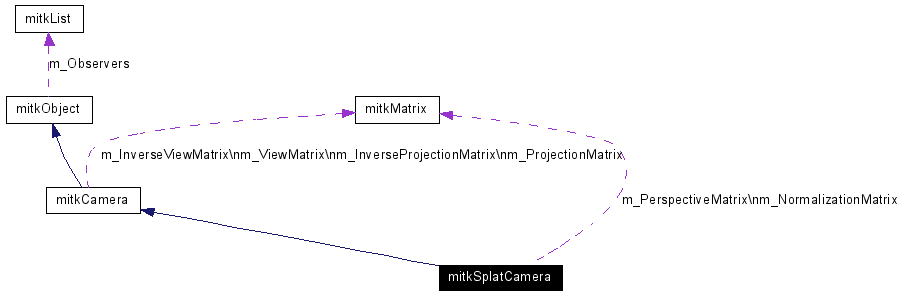

[legend]Collaboration diagram for mitkSplatCamera:

[legend]List of all members.

Public Member Functions
virtual void	PrintSelf (ostream &os)
virtual void	Frustum (float left, float right, float bottom, float top, float zNear, float zFar)
virtual void	Perspective (float fovy, float aspect, float zNear, float zFar)
void	GetPerspectiveMatrix (mitkMatrix *m)
void	GetPerspectiveMatrix (float m[16])
const mitkMatrix *	GetPerspectiveMatrix (void)
void	GetNormalizationMatrix (mitkMatrix *m)
void	GetNormalizationMatrix (float m[16])
const mitkMatrix *	GetNormalizationMatrix (void)

---

Detailed Description

mitkSplatCamera - a camera in 3D scene

mitkSplatCamera is a camera in 3D scene. The only way you can access it is to get a pointer to it by using the member function GetCamera() of mitkScene. Then you can control it through its interface, and the change will affect the image rendered in the scene. This class derives from mitkCamera, and separates projection matrix into perspective matrix and normalization matrix.

Note:

If a mitkVolumeRendererSplatting object is used to render the volume, you should set the scene's camera to be mitkSplatCamera object.

See also:

Please see more information from mitkCamera class.

---

Member Function Documentation

virtual void mitkSplatCamera::Frustum (  float  left, float  right, float  bottom, float  top, float  zNear, float  zFar )  [virtual]

Perspective Projection Reimplemented from mitkCamera.

const mitkMatrix* mitkSplatCamera::GetNormalizationMatrix (  void   )  [inline]

Get the Normalization transform matrix.

void mitkSplatCamera::GetNormalizationMatrix (  float  m[16]  )

Get the Normalization transform matrix.

void mitkSplatCamera::GetNormalizationMatrix (  mitkMatrix *  m  )

Get the Normalization transform matrix.

const mitkMatrix* mitkSplatCamera::GetPerspectiveMatrix (  void   )  [inline]

Get the perspective transform matrix.

void mitkSplatCamera::GetPerspectiveMatrix (  float  m[16]  )

Get the perspective transform matrix.

void mitkSplatCamera::GetPerspectiveMatrix (  mitkMatrix *  m  )

Get the perspective transform matrix.

virtual void mitkSplatCamera::Perspective (  float  fovy, float  aspect, float  zNear, float  zFar )  [virtual]

Perspective Projection Reimplemented from mitkCamera.

virtual void mitkSplatCamera::PrintSelf (  ostream &  os  )  [virtual]

Print the necessary information about this object for the debugging purpose. Parameters: os  The specified ostream to output information. Reimplemented from mitkCamera.

---

The documentation for this class was generated from the following file:

• mitkSplatCamera.h

---
