mitkImageViewManipulatorWithWidgets Class Reference

mitkImageViewManipulatorWithWidgets - manipulator of an image view contains widgets More...

#include <mitkImageViewManipulatorWithWidgets.h>

Inherits mitkPickManipulator.

Inheritance diagram for mitkImageViewManipulatorWithWidgets:

Inheritance graph
[legend]

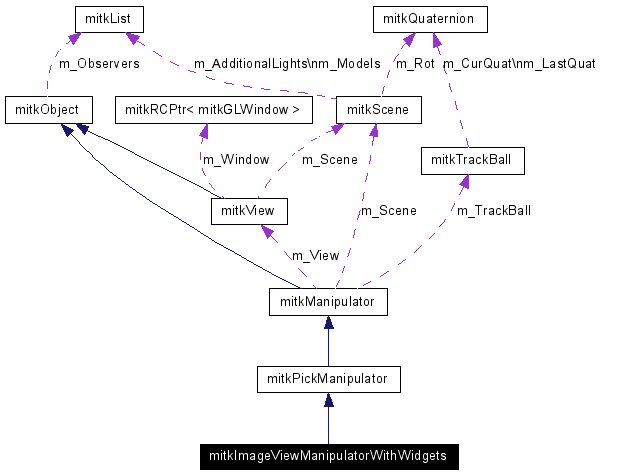

Collaboration diagram for mitkImageViewManipulatorWithWidgets:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual void PrintSelf (ostream &os)

Protected Member Functions

virtual void _onMouseDown (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void _onMouseUp (int mouseButton, bool ctrlDown, bool shiftDown, int xPos, int yPos)
virtual void _onMouseMove (bool ctrlDown, bool shiftDown, int xPos, int yPos)

Detailed Description

mitkImageViewManipulatorWithWidgets - manipulator of an image view contains widgets

mitkImageViewManipulatorWithWidgets is a manipulator of an image view contains widgets. It can select a widget in the scene and drive the widget to manipulate the object in the scene.


Member Function Documentation

virtual void mitkImageViewManipulatorWithWidgets::_onMouseDown int  mouseButton,
bool  ctrlDown,
bool  shiftDown,
int  xPos,
int  yPos
[protected, virtual]


Deal with mouse down event.

Parameters:
mouseButton indicates which mouse button is pressed
ctrlDown indicates if the key "Ctrl" is pressed
shiftDown indicates if the key "Shift" is pressed
xPos x-coordinate of the mouse position when mouse down event occurs
yPos y-coordinate of the mouse position when mouse down event occurs

Implements mitkManipulator.

virtual void mitkImageViewManipulatorWithWidgets::_onMouseMove bool  ctrlDown,
bool  shiftDown,
int  xPos,
int  yPos
[protected, virtual]


Deal with mouse move event.

Parameters:
ctrlDown indicates if the key "Ctrl" is pressed
shiftDown indicates if the key "Shift" is pressed
xPos x-coordinate of the mouse position when mouse move event occurs
yPos y-coordinate of the mouse position when mouse move event occurs

Implements mitkManipulator.

virtual void mitkImageViewManipulatorWithWidgets::_onMouseUp int  mouseButton,
bool  ctrlDown,
bool  shiftDown,
int  xPos,
int  yPos
[protected, virtual]


Deal with mouse up event.

Parameters:
mouseButton indicates which mouse button was pressed and now released
ctrlDown indicates if the key "Ctrl" is pressed
shiftDown indicates if the key "Shift" is pressed
xPos x-coordinate of the mouse position when mouse up event occurs
yPos y-coordinate of the mouse position when mouse up event occurs

Implements mitkManipulator.

virtual void mitkImageViewManipulatorWithWidgets::PrintSelf ostream &  os  )  [virtual]


Print the necessary information about this object for the debugging purpose.

Parameters:
os The specified ostream to output information.

Reimplemented from mitkPickManipulator.


The documentation for this class was generated from the following file:
